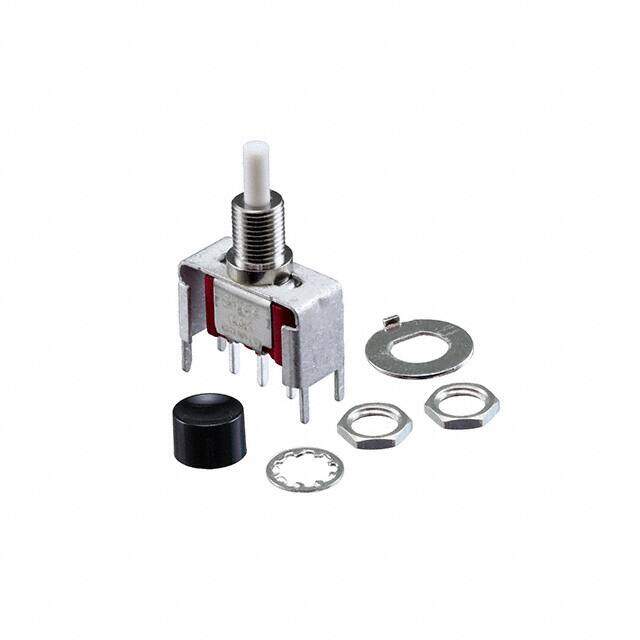

8168SHV6QE2 image
Favorite
8168SHV6QE2 image
Favorite

8168SHV6QE2

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Switch Push Button (ON) OFF SPDT Round Plunger 6A 250VAC 28VDC Momentary Contact V-Bracket Panel Mount/Bracket
PDF
/
Inventory: 8197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 10.51mm
Length 19.56mm

Technical

Max Voltage Rating (DC) 28V
Electrical Life 50,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 6A
Depth 9.53mm
Orientation Straight
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 28V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 8060
Published 2012
Packaging Tray
Operating Temperature -30°C~65°C

Physical

Actuator Material Glass, Nylon, Polyester
Housing Material Stainless Steel
Mounting Type Panel Mount, Rear
Mount Brackets, Panel
Contact Material Silver

Supply Chain

Factory Lead Time 14 Weeks
