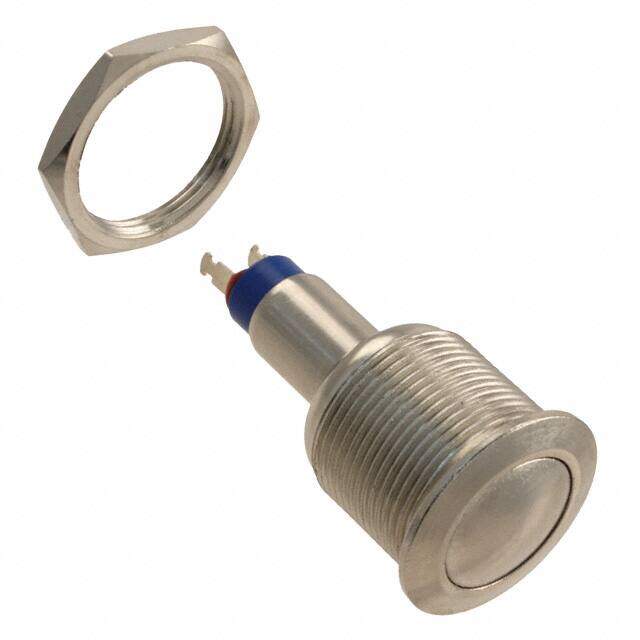

AV19402ZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 120V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP54, Water Resistant
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 1.4mm
Body Height 21.47mm
Technical
Contact Current Rating 8A
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 10,000 Cycles
Max Voltage Rating (AC) 250V
Sealing EPOXY TERMINAL SEALED; IP54
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 19.20mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Domed
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 3A
Ingress Protection IP54 - Dust Protected, Water Resistant
Orientation Straight
Current Rating (Amps) 3A AC
HTS Code 8536.50.70.00
Type Anti-Vandal
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series AV
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 8 Weeks
