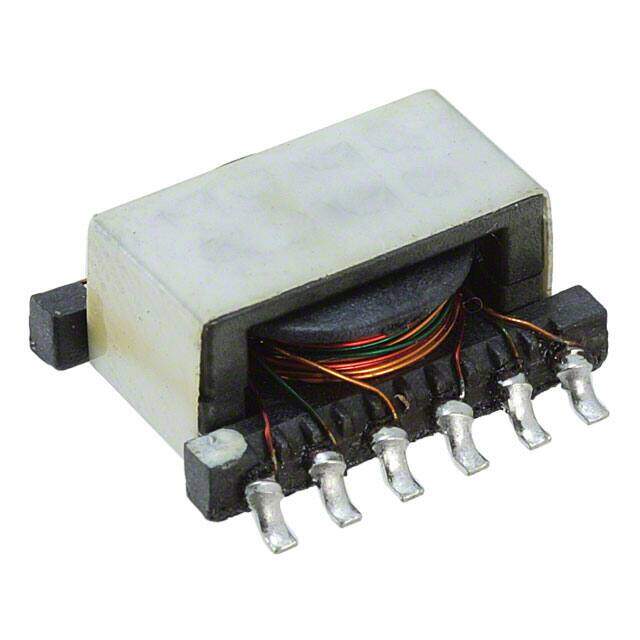

VPH1-0102-R image
Favorite
VPH1-0102-R image
Favorite
RoHS
RoHS RoHS compliant
Package SMD/SMT
Category Transformers / Pulse Transformers
Description Inductor Power Wirewound 14.7uH 20% Ferrite 550mA 344mOhm DCR T/R
PDF
/
Buying Options
Total Price: USD $7.11
Unit Price: USD $7.1104
≥1 USD $7.1104
≥10 USD $5.84848
≥100 USD $5.374336
≥500 USD $5.05824
≥1000 USD $4.82108
≥3000 USD $4.742038
Inventory: 1175
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 9.2mm
Length 12.9mm
Height Seated (Max) 0.244 6.20mm
Height 6.1976mm

Technical

ET (Volt-Time) 32.9VμS
Number of Coils 2
Inductance - Series 2.4 mH
Inductance - Parallel 150 μH
Transformer Type General Purpose
Max DC Current 530mA
Current 1.2A
DC Resistance (DCR) 344mOhm
Inductance 14.7μH
Military Standard Not
Depth 13mm
Shielding Unshielded
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance 20%
Size / Dimension 0.508Lx0.512W 12.90mmx13.00mm
Series VERSA-PAC?
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Core Material Ferrite
Weight 2.721554g
Number of Pins 12
Package / Case SMD/SMT
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
