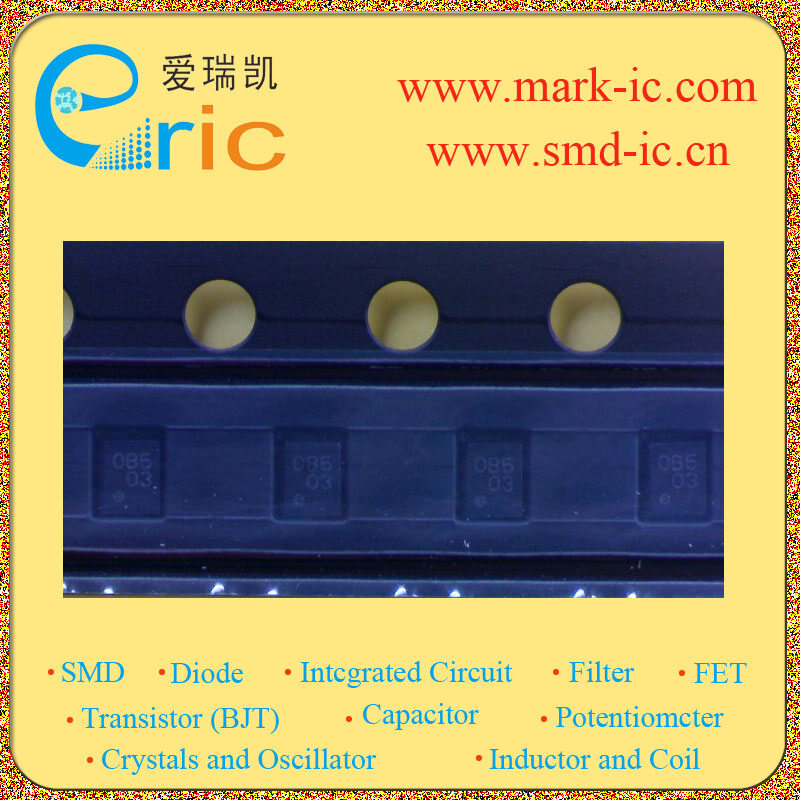

XC6221D362GR-G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
FIXED Tape & Reel (TR) ROHS3Compliant Nickel/Silver/Gold (Ni/Ag/Au) voltage regulator linear 3.672V 1.6mm 0.25A 85C
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.4016
≥1 USD $2.4016
≥10 USD $1.9703
≥100 USD $1.90855
≥500 USD $1.8468
≥1000 USD $1.786
Inventory: 1102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Surface Mount YES
Technical
Packaging Tape & Reel (TR)
Published 2009
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Nickel/Silver/Gold (Ni/Ag/Au)
HTS Code 8542.39.00.01
Subcategory Other Regulators
Packing Method TAPE AND REEL
Technology CMOS
Terminal Position DUAL
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.6mm
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PDSO-N4
Number of Outputs 1
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Output Voltage 1 3.6V
Input Voltage (Min) 1.6V
Input Voltage (Max) 6V
Dropout Voltage1-Nom 0.08V
Output Voltage1-Max 3.672V
Output Voltage1-Min 3.528V
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max 2%
Output Current1-Max 0.25A
Dropout Voltage1-Max 0.14V
Input Voltage Absolute-Max 6.5V
Adjustability FIXED
Dimensions
Height Seated (Max) 0.6mm
Length 1.6mm
Width 1.2mm
Compliance
RoHS Status ROHS3 Compliant
