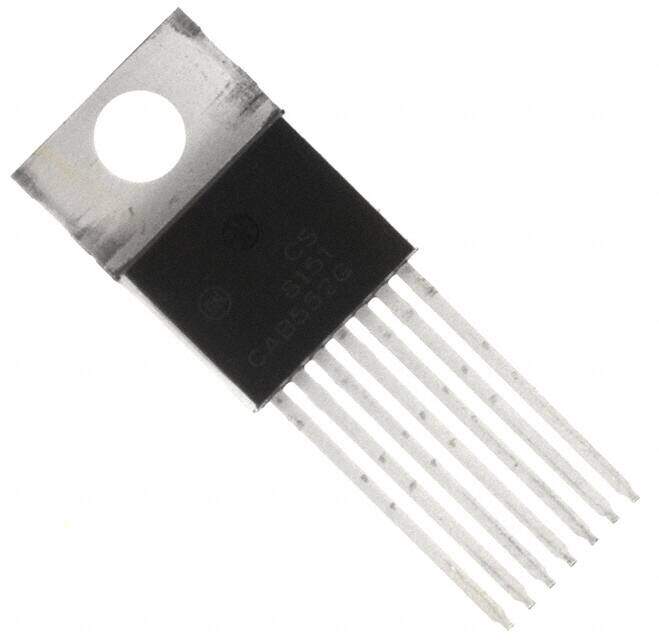

CS8151YT7G
RoHS
RoHS compliant
RoHS compliantPackage TO-220-7
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
Tube Through Hole Over Temperature Over Voltage Short Circuit ROHS3Compliant voltage regulator linear 6V 100mA -40C~125C
PDF
/
Inventory: 4829
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Output Voltage1-Min 4.85V
PSRR 75dB (120Hz)
Voltage Dropout (Max) 0.6V @ 100mA
Protection Features Over Temperature, Over Voltage, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 5V
Input Voltage (Min) 6V
Output Voltage 1 5V
Control Features Reset, Wake-Up, Watchdog
Current - Output 100mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 26V
Qualification Status COMMERCIAL
JESD-30 Code R-XSFM-T7
Pin Count 3
Time@Peak Reflow Temperature-Max (s) 40
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Terminal Finish MATTE TIN
Number of Terminations 7
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Packaging Tube
Operating Temperature -40°C~125°C
Physical
Surface Mount NO
Package / Case TO-220-7
Mounting Type Through Hole
