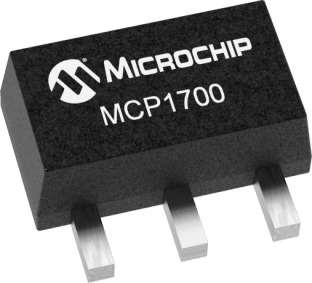

MCP1700T-5002E/MBVAO
RoHS
RoHS compliant
RoHS compliantPackage TO-243AA
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - Linear
Description
MCP1700 Tape & Reel (TR) Surface Mount Over Current Over Temperature Short Circuit voltage regulator linear 0.178V 4.5mm 250mA -40C~125C
PDF
/
Buying Options
Total Price: USD $0.34
Unit Price: USD $0.34433
≥1 USD $0.34433
≥10 USD $0.324836
≥100 USD $0.30646
≥500 USD $0.28911
≥1000 USD $0.272746
Inventory: 1099
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.5mm
Length 4.5mm
Technical
Input Voltage Absolute-Max 6.5V
Voltage Tolerance-Max 3%
Output Voltage1-Min 4.85V
Dropout Voltage1-Nom 0.178V
PSRR 44dB (100Hz)
Voltage Dropout (Max) 0.35V @ 250mA
Current - Quiescent (Iq) 4μA
Protection Features Over Current, Over Temperature, Short Circuit
Number of Regulators 1
Voltage - Output (Min/Fixed) 5V
Input Voltage (Min) 5.5V
Output Voltage 1 5V
Current - Output 250mA
Output Configuration Positive
Output Type Fixed
Voltage - Input (Max) 6V
Number of Outputs 1
JESD-30 Code R-PSSO-F3
Base Part Number MCP1700
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form FLAT
Terminal Position SINGLE
Technology CMOS
Packing Method TR
Terminal Finish Matte Tin (Sn)
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case TO-243AA
Mounting Type Surface Mount
Alternative Model
