BU33UV7NUX-E2
RoHS
RoHS compliant

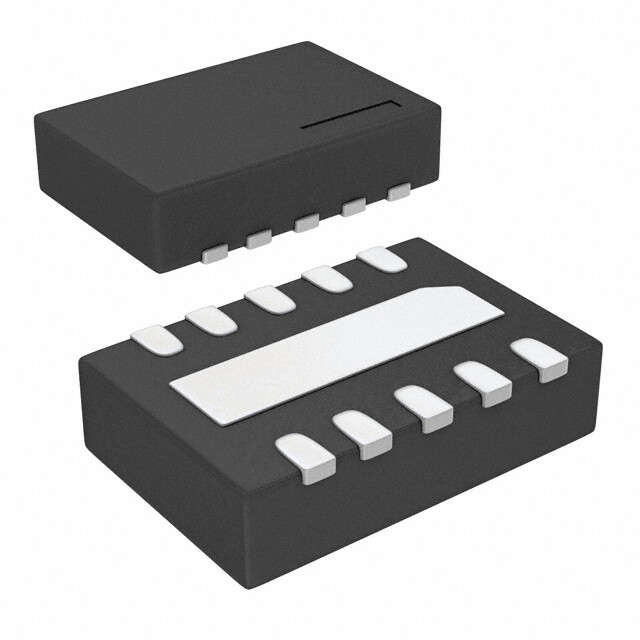

RoHS compliantPackage 10-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
ALSO OPERATES IN PFM CONTROL TECHNIQUE Tape & Reel (TR) Active Step-Up DC to DC switching regulator 2.4V 2mm 500mA 800kHz
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $1.00672
≥100 USD $0.95568
≥500 USD $0.78496
≥1000 USD $0.733779
≥3000 USD $0.648472
Inventory: 1509
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 3mm
Height Seated (Max) 0.6mm
Technical
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Frequency - Switching 800kHz
Topology Boost
Current - Output 500mA
Output Configuration Positive
Analog IC - Other Type SWITCHING REGULATOR
Input Voltage-Nom 2.4V
Voltage - Input (Min) 0.6V
Output Type Fixed
Output Voltage 3.3V
Voltage - Input (Max) 4.5V
Number of Outputs 1
Function Step-Up
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.5mm
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position DUAL
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TJ
Physical
Surface Mount YES
Package / Case 10-UFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
