NCP1445T
RoHS
/

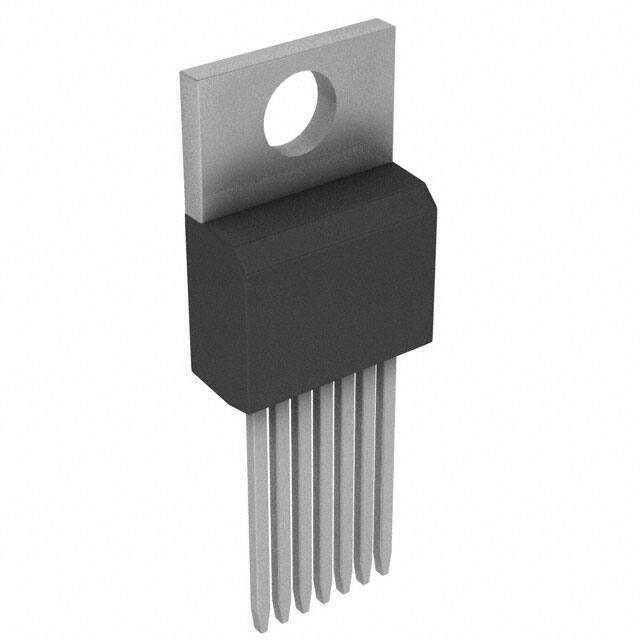

Package TO-220-7
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
Tube TIN LEAD Obsolete Step-Up Step-Up/Step-Down DC to DC switching regulator 12V 4A Switch 560kHz 0C~150C TJ
PDF
/
Buying Options
Total Price: USD $1.59
Unit Price: USD $1.59125
≥1 USD $1.59125
≥10 USD $1.30625
≥100 USD $1.2654
≥500 USD $1.22455
≥1000 USD $1.1837
Inventory: 1446
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case TO-220-7
Surface Mount NO
Technical
Operating Temperature 0°C~150°C TJ
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 7
Terminal Finish TIN LEAD
Terminal Position SINGLE
JESD-30 Code R-PSFM-T7
Function Step-Up, Step-Up/Step-Down
Number of Outputs 1
Voltage - Input (Max) 30V
Output Type Adjustable
Voltage - Input (Min) 2.7V
Input Voltage-Nom 12V
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive or Negative
Current - Output 4A Switch
Topology Boost, Flyback, Forward Converter, SEPIC
Control Mode CURRENT-MODE
Frequency - Switching 560kHz
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier No
Compliance
RoHS Status Non-RoHS Compliant
Alternative Model
