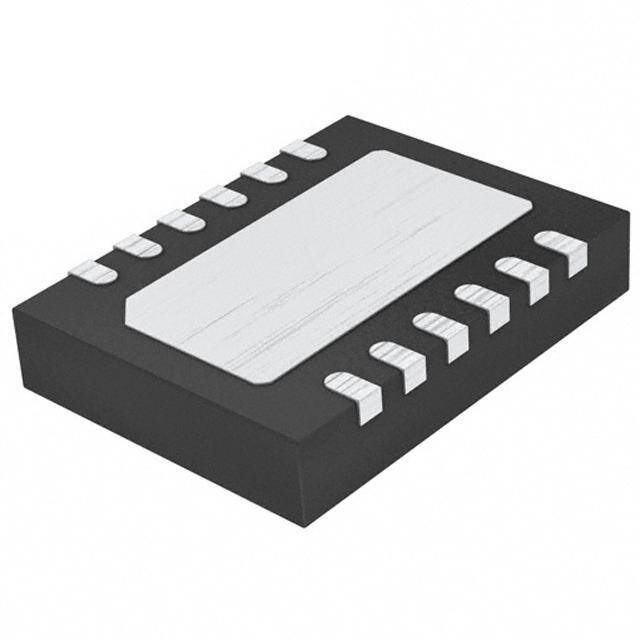

ER3110DI
RoHS
/
Package DFN
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Regulators
Description
CURRENT-MODE RoHS Compliant Adjustable Positive Switching Regulator IC 125C 2MHz 1A 3mm
PDF
/
Inventory: 9065
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Package / Case DFN
Technical
Packaging Cut Tape (CT)
Published 2013
Number of Terminations 12
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Additional Feature ALSO OPERATES IN PFM CONTROL TECHNIQUE
Terminal Position DUAL
Terminal Form NO LEAD
Number of Functions 1
Terminal Pitch 0.5mm
Number of Outputs 1
Output Type Adjustable
Input Voltage-Nom 6V
Temperature Grade AUTOMOTIVE
Analog IC - Other Type SWITCHING REGULATOR
Output Configuration Positive
Current - Output 1A
Max Output Voltage 34V
Min Input Voltage 3V
Control Mode CURRENT-MODE
Frequency - Switching 2MHz
Max Input Voltage 36V
Control Technique PULSE WIDTH MODULATION
Synchronous Rectifier Yes
Min Output Voltage 600mV
Switcher Configuration BUCK
Dimensions
Length 4mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
