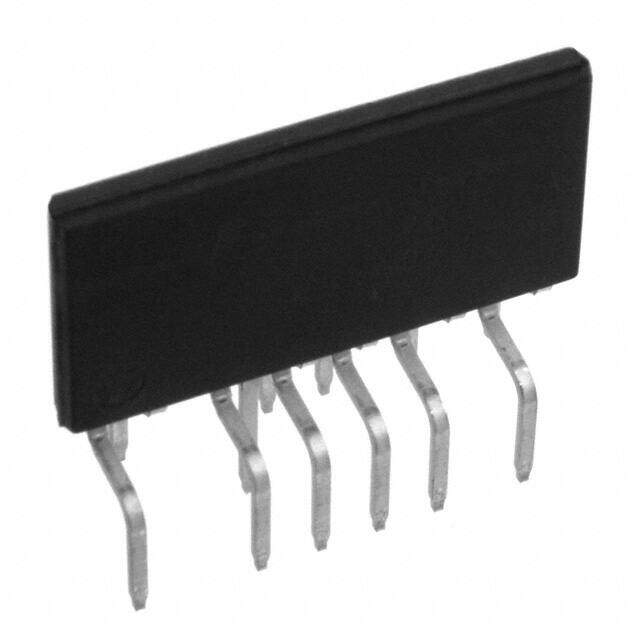

TFS7703H image
Favorite
TFS7703H image
Favorite
RoHS
RoHS RoHS compliant
Package 16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description Flyback Forward Converter Tube HiperTFS?-2 e3 DC to DC switching controller 50ns 960muA 100V 66kHz 132kHz
PDF
/
Buying Options
Total Price: USD $6.94
Unit Price: USD $6.936848
≥1 USD $6.936848
≥10 USD $6.544196
≥100 USD $6.173773
≥500 USD $5.824315
≥1000 USD $5.494634
Inventory: 1279
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Output Phases 1
Isolation Isolated
Max Duty Cycle 63 %
Fall Time (Typ) 50 ns
Synchronous Rectifier No
Rise Time 100ns
Frequency - Switching 66kHz 132kHz
Topology Flyback, Forward Converter
Control Features Enable, Reset
Output Power 229W
Voltage - Supply (Vcc/Vdd) Up to 11.5V
Output Configuration Positive, Isolation Capable
Operating Supply Current 960μA
Analog IC - Other Type ANALOG CIRCUIT
Output Type Transistor Driver
Output Voltage 100V
Number of Outputs 2
Function Step-Up, Step-Down
Terminal Finish MATTE TIN
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series HiperTFS?-2
Published 2015
Packaging Tube
Operating Temperature -40°C~150°C TJ

Physical

Package / Case 16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 6 Weeks
