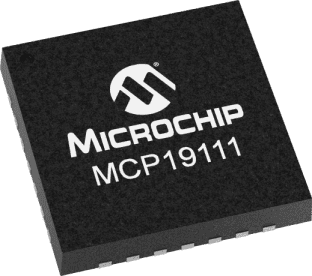

MCP19111T-E/MQVAO
RoHS
RoHS compliant
RoHS compliantPackage 28-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Voltage Regulators - DC DC Switching Controllers
Description
MCP19111 Buck Tape & Reel (TR) Automotive AEC-Q100 DC to DC switching controller 5mm 32V 100kHz~1.6MHz -40C~125C TJ
PDF
/
Inventory: 3163
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5mm
Length 5mm
Technical
Clock Sync No
Serial Interfaces I2C, PMBus, SMBus
Synchronous Rectifier Yes
Control Technique PULSE WIDTH MODULATION
Input Voltage (Max) 32V
Frequency - Switching 100kHz~1.6MHz
Control Mode CURRENT-MODE
Topology Buck
Input Voltage (Min) 4.5V
Control Features Phase Control
Voltage - Supply (Vcc/Vdd) 4.5V~32V
Output Configuration Positive
Analog IC - Other Type SWITCHING CONTROLLER
Input Voltage-Nom 12V
Output Type Transistor Driver
Number of Outputs 1
Function Step-Down
JESD-30 Code S-PQCC-N28
Base Part Number MCP19111
Terminal Pitch 0.5mm
Terminal Position QUAD
Additional Feature ADJ O/P VOLTAGE FROM 0.5V TO 3.6V
Number of Terminations 28
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TJ
Physical
Surface Mount YES
Package / Case 28-VFQFN Exposed Pad
Mounting Type Surface Mount
