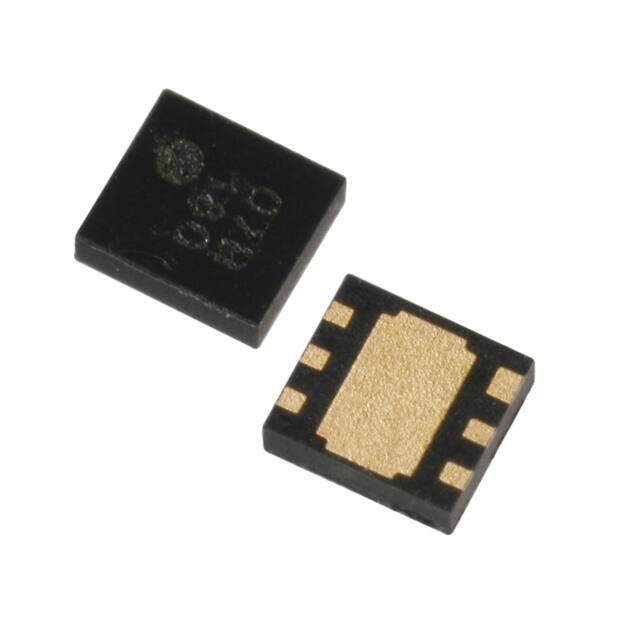

XC6121A344ER-G
RoHS
RoHS compliant
RoHS compliantPackage 6-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Supervisors
Description
ROHS3Compliant Tape & Reel (TR) Watchdog Circuit Nickel/Silver/Gold (Ni/Ag/Au) supervisor 2V 2mm 100ms Typical -40C~85C TA
PDF
/
Inventory: 7453
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 2mm
Height Seated (Max) 0.6mm
Technical
Reset Timeout 100ms Typical
Number of Voltages Monitored 1
Voltage - Threshold 4.4V
Reset Active Low
Adjustable Threshold NO
Number of Channels 1
Supply Voltage-Min (Vsup) 1V
Supply Voltage-Max (Vsup) 6V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-N6
Output Open Drain or Open Collector
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.5mm
Supply Voltage 2V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Subcategory Power Management Circuits
Terminal Finish Nickel/Silver/Gold (Ni/Ag/Au)
Type Watchdog Circuit
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Package / Case 6-UFDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
