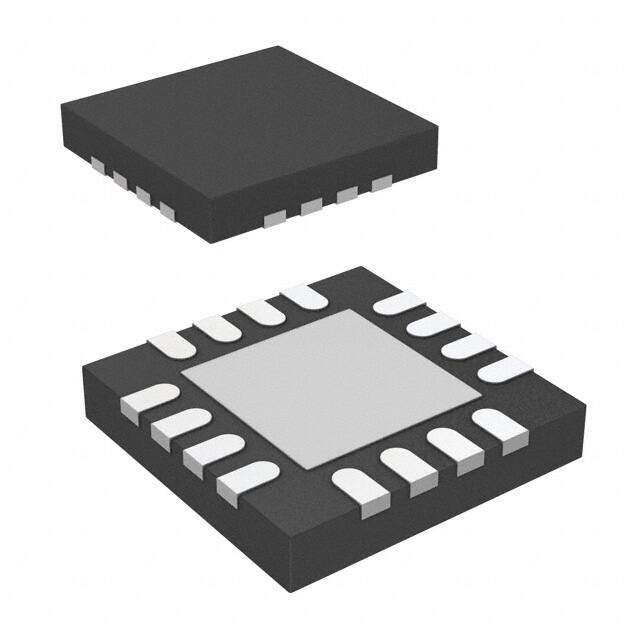

DRV8801RTYT
RoHS
RoHS compliant
RoHS compliantPackage 16-WQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
DMOS Tape & Reel (TR) DRV8801 General Purpose motor driver 36V 2.8A 4mm -40C~150C TJ
PDF
/
Buying Options
Total Price: USD $1.89
Unit Price: USD $1.892
≥1 USD $1.892
≥10 USD $1.69928
≥100 USD $1.60688
≥500 USD $1.3926
Inventory: 1464
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Thickness 750μm
Width 4mm
Length 4mm
Height 800μm
Technical
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Motor Type Brushed
Voltage - Load 8V~38V
Max Collector Current 1.8A
Collector Emitter Voltage (VCEO) 36V
Logic Function AND
Quiescent Current 3.2mA
Current - Output 2.8A
Output Configuration Half Bridge (2)
Nominal Supply Current 6mA
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Min (Vsup) 8V
Power Supplies 8/38V
Supply Voltage-Max (Vsup) 38V
Operating Supply Voltage 32V
Output Voltage 400mV
Number of Outputs 1
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number DRV8801
Terminal Pitch 0.65mm
Supply Voltage 32V
Peak Reflow Temperature (Cel) 260
Terminal Position QUAD
Voltage - Supply 8V~38V
Technology DMOS
Subcategory Motion Control Electronics
Applications General Purpose
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C TJ
Physical
Number of Pins 16
Package / Case 16-WQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 6 Weeks
Alternative Model
