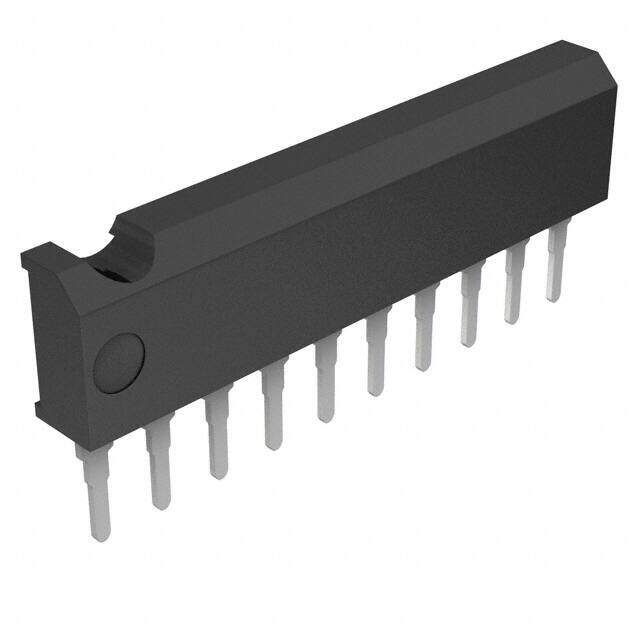

BA6209N
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP
Category Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers
Description
CMOS Tube BA6209 Media Player motor driver 18V 1.6A 2.8mm -20C~75C TA
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.9709
≥1 USD $0.9709
≥10 USD $0.79705
≥100 USD $0.77235
≥500 USD $0.7467
≥1000 USD $0.722
Inventory: 1397
Minimum: 1
-
+
Technical Details
Technical
Terminal Position SINGLE
Peak Reflow Temperature (Cel) 260
Supply Voltage 12V
Voltage - Supply 6V~18V
Technology CMOS
Subcategory Motion Control Electronics
Applications Media Player
Terminal Finish Tin/Copper (Sn/Cu)
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Published 1999
Packaging Tube
Operating Temperature -20°C~75°C TA
Motor Type - AC, DC Brushed DC
Voltage - Load 6.6V~7.2V
Current - Output 1.6A
Output Configuration Half Bridge (2)
Nominal Supply Current 5.5mA
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
Interface Parallel
Supply Voltage-Min (Vsup) 6V
Operating Supply Voltage 18V
Number of Outputs 1
Function Driver - Fully Integrated, Control and Power Stage
Base Part Number BA6209
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Physical
Number of Pins 10
Package / Case 10-SIP
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 10 Weeks
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 2.8mm
Length 25.2mm
Height Seated (Max) 7.2mm
