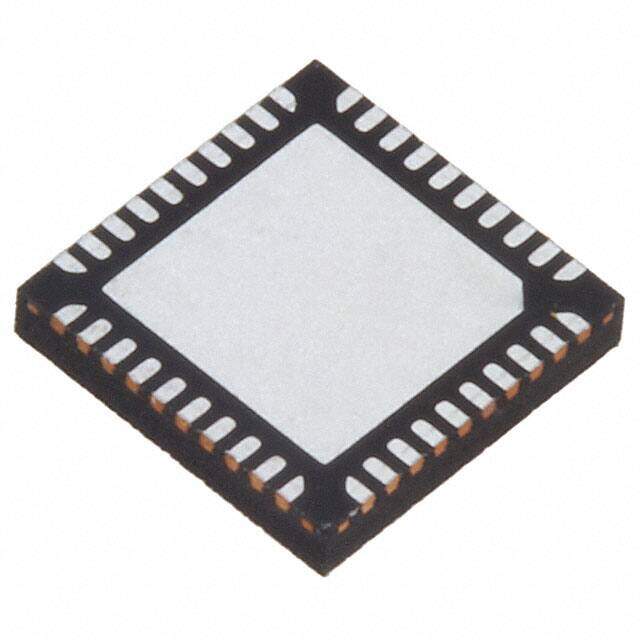

M09000G-14
RoHS
/
Package 40-VFQFN Exposed Pad
Category Integrated Circuits (ICs) / PMIC - LED Drivers
Description
IC PMIC FOR HD
PDF
/
Buying Options
Total Price: USD $17.15
Unit Price: USD $17.1512
≥1 USD $17.1512
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Supply (Min) 2.7V
Voltage - Supply (Max) 5.25V
Dimming PWM
Internal Switch(s) Yes
Current - Output / Channel 1.2A
Output Current per Channel 1.2A
Topology Step-Down (Buck), Step-Up (Boost)
Voltage - Output 4.6V
Max Supply Voltage 5.25V
Number of Outputs 3
Frequency 12.5kHz
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type DC DC Regulator
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Supplier Device Package 40-QFN (5x5)
Package / Case 40-VFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
