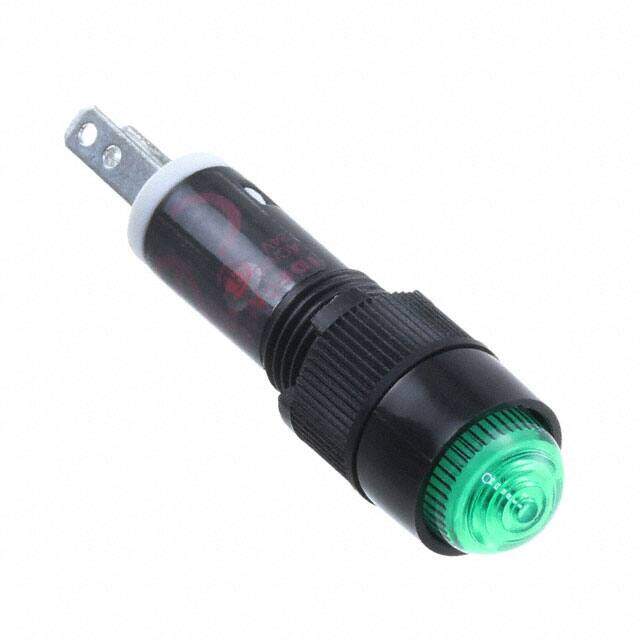

AP8M222-G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / Panel Indicators, Pilot Lights
Description
LED PANEL INDICATOR GRN 24V IP40
PDF
/
Buying Options
Total Price: USD $10.76
Unit Price: USD $10.7624
≥1 USD $10.7624
≥10 USD $8.11888
≥100 USD $6.820088
≥500 USD $6.263382
≥1000 USD $5.915413
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Panel
Number of Pins 2
Panel Cutout Shape Round
Technical
Published 2005
Series AP8
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type LED
Max Operating Temperature 55°C
Min Operating Temperature -20°C
Voltage - Rated 24V
Ingress Protection IP40
Termination Style Solder Lug
Operating Supply Voltage 24V
Panel Cutout Dimensions 0.32 (8.10mm)
Forward Current 15mA
Lens Style Round with Domed Top
Lens Size 8.00mm Dia
Forward Voltage 24V
Number of LEDs 1
Lamp Color Green
Actuator Diameter 8 mm
Dimensions
Length 31mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AC/DC
