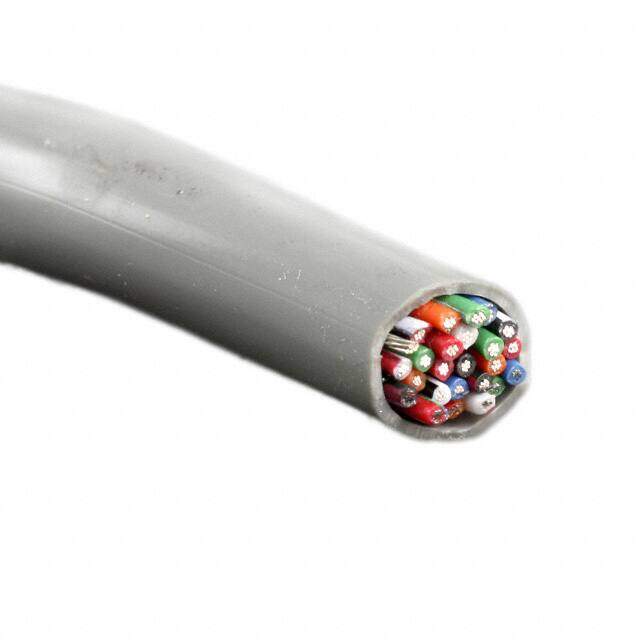

C0748A.41.10 image
Favorite
C0748A.41.10 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Cables, Wires / Multiple Conductor Cables
Description CABLE 25COND 24AWG SHLD 1000
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.818828
≥1 USD $1.818828
≥10 USD $1.725891
Inventory: 3072
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Insulation Thickness 812.8μm
Jacket (Insulation) Thickness 0.0320 0.813mm
Length 1000.0' 304.8m

Technical

Shield Coverage 100%
Shield Type Foil
Conductor Insulation Poly-Vinyl Chloride (PVC)
Insulation Diameter 8.4582 mm
Jacket (Insulation) Diameter 0.333 (8.46mm)
Usage Computer
Conductor Strand 7/32
Jacket Color Gray
Wire/Cable Gauge 24 AWG
Wire/Cable Type Multi-Conductor
Cable Type Multi-Conductor
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 25
Color Grey
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Drain Wire
Operating Temperature -20°C~80°C

Physical

Shield Material Flexfoil?
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
Insulation Material PVC
Mount Cable

Supply Chain

Factory Lead Time 6 Weeks
