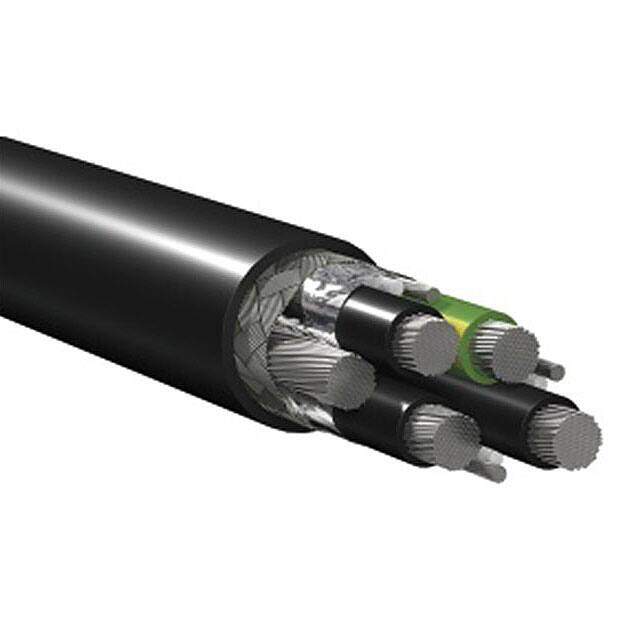

29502 010250
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description
CABLE 4 COND 12AWG SHLD 250'
PDF
/
Inventory: 2968
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Jacket (Insulation) Thickness 0.0730 1.854mm
Length 250.0' 76.2m
Technical
Shield Coverage 100%, 85%
Shield Type Foil, Braid
Conductor Insulation Polyolefin (PO)
Jacket (Insulation) Diameter 0.630 (16.00mm)
Usage Motor Supply, Variable Frequency Drive (VFD)
Conductor Strand 65/30
Jacket Color Black
Cable Type Multi-Conductor
Connector Support Type WIRE AND CABLE
Wire Gauge 12 AWG
Number of Conductors 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Drain Wire, Oil Resistant, UV Resistant
Published 2011
Packaging Spool
Operating Temperature -40°C~90°C
Physical
Shield Material Aluminum; Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Conductor Material Copper, Tinned
