45495 BK001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

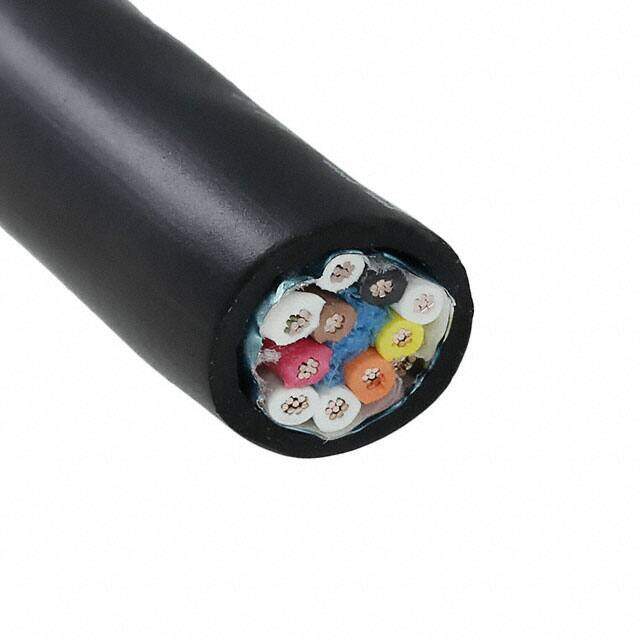

CABLE 5 PAIR 24AWG BLACK 1000'
PDF
/
Inventory: 8769
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Jacket (Insulation) Diameter 0.341 (8.66mm)
Conductor Insulation Thermoplastic Elastomer (TPE)
Shield Type Foil
Shield Coverage 100%
Conductor Strand 7/32
Jacket Color Black
Cable Type Multi-Pair
Voltage 300V
Wire Gauge 24 AWG
Number of Conductors 10 (5 Pair Twisted)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Biological Compatibility, Drain Wire, Rip Cord
Series Xtra-Guard? 4
Published 2010
Packaging Spool
Operating Temperature -50°C~125°C
Dimensions
Length 1000.0' 304.8m
Jacket (Insulation) Thickness 0.0420 1.067mm
Compliance
RoHS Status ROHS3 Compliant
Ratings ISO 10993
Physical
Shield Material Aluminum
Jacket (Insulation) Material Thermoplastic Elastomer (TPE)
Conductor Material Copper, Tinned
Supply Chain
Factory Lead Time 6 Weeks
