2214C SL005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cables, Wires / Multiple Conductor Cables
Description

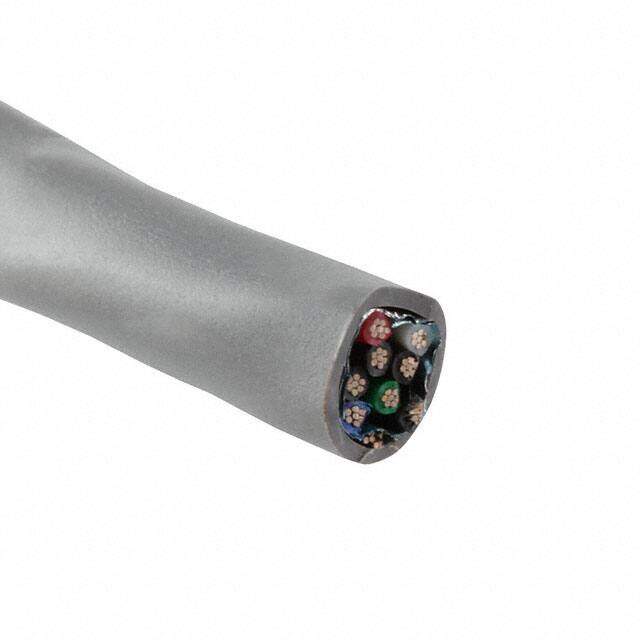

CABLE 4PAIR 22AWG SHLD 100'
PDF
/
Buying Options
Total Price: USD $237.33
Unit Price: USD $237.3272
≥1 USD $237.3272
≥10 USD $219.8768
≥100 USD $208.24144
≥500 USD $202.88312
Inventory: 108
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Insulation Material POLYVINYL CHLORIDE
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Technical
Operating Temperature -20°C~80°C
Packaging Spool
Published 2006
Feature Drain Wire
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Resistance 0.054Ohm
Shielding YES
Construction STRANDED
Number of Conductors 8 (4 Pair Twisted)
Approval Agency CE; CSA; UL
Wire Gauge 22 AWG
Voltage 150V
Connector Support Type WIRE AND CABLE
Cable Type Multi-Pair
Jacket Color Slate
Conductor Strand 7/30
Usage Communication, Control
Jacket (Insulation) Diameter 0.266 (6.76mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Type Foil
Shield Coverage 100%
Stranding 7X30
Wire and Cable Name FLEXIBLE CORD AND FIXTURE WIRE
Dimensions
Length 100.0' 30.5m
Jacket (Insulation) Thickness 0.0320 0.813mm
Compliance
RoHS Status ROHS3 Compliant
