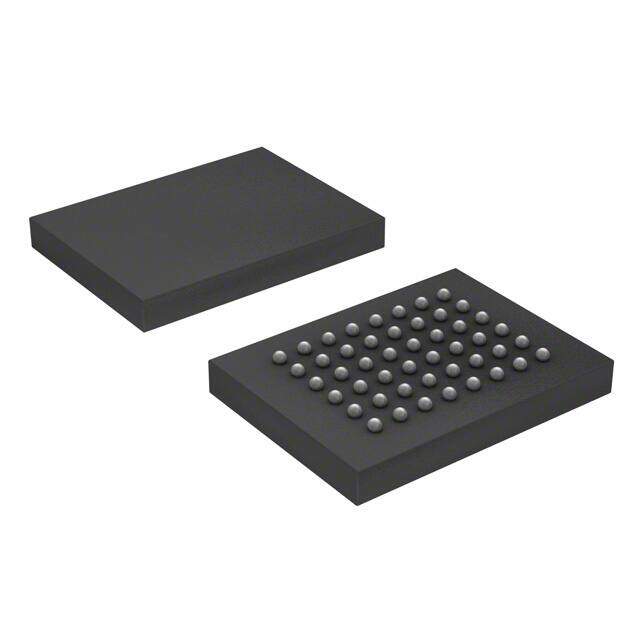

N04L63W1AB27I image
Favorite
N04L63W1AB27I image
Favorite

N04L63W1AB27I

ON Semiconductor
RoHS
/
Package 48-LFBGA
Category Integrated Circuits (ICs) / Memory
Description Surface Mount N04L63W1A Tray SRAM - Asynchronous ic memory 70ns 8mm 16mA 4Mb
PDF
/
Inventory: 1390
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 48-LFBGA
Number of Pins 48

Technical

Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2008
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
Technology SRAM - Asynchronous
Voltage - Supply 2.3V~3.6V
Terminal Position BOTTOM
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.75mm
Base Part Number N04L63W1A
Pin Count 48
Qualification Status Not Qualified
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 3.6V
Memory Size 4Mb 256K x 16
Number of Ports 1
Nominal Supply Current 16mA
Memory Type Volatile
Memory Format SRAM
Memory Interface Parallel
Output Characteristics 3-STATE
Memory Width 16
Write Cycle Time - Word, Page 70ns
Address Bus Width 18b
Density 4 Mb
Access Time (Max) 70 ns
I/O Type COMMON
Sync/Async Asynchronous
Word Size 16b

Dimensions

Length 8mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
