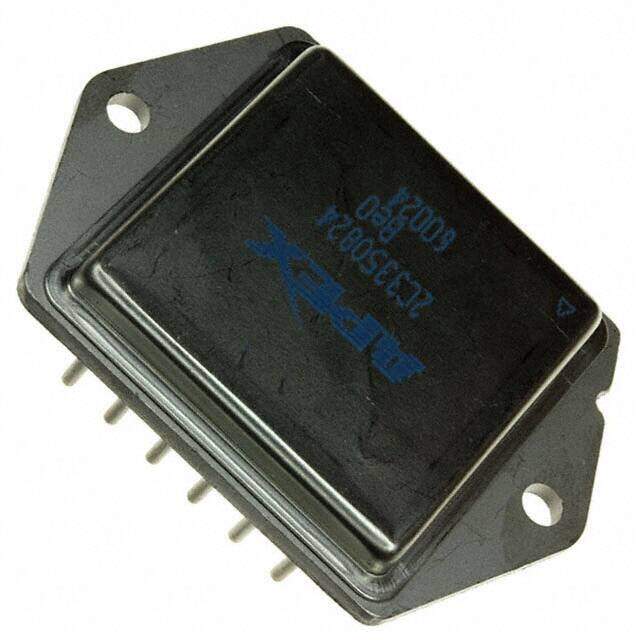

PA04
RoHS
RoHS compliant
RoHS compliantPackage 12-DIP Module
Category Integrated Circuits (ICs) / Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description
RoHS Compliant EAR99 PA04 Nickel (Ni) op amp buffer circuit 58.65mm 90mA 75V 2000kHz
PDF
/
Buying Options
Total Price: USD $93.4
Unit Price: USD $93.40495
≥1 USD $93.40495
≥10 USD $90.3925
≥100 USD $87.3791
≥500 USD $78.33985
Inventory: 202
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-DIP Module
Number of Pins 12
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2009
Series Apex Precision Power?
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 12
ECCN Code EAR99
Terminal Finish Nickel (Ni)
Subcategory Operational Amplifier
Technology MOS
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 75V
Terminal Pitch 5.08mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number PA04
Pin Count 12
Qualification Status Not Qualified
Number of Circuits 1
Operating Supply Current 70mA
Supply Current-Max 90mA
Slew Rate 50V/μs
Architecture VOLTAGE-FEEDBACK
Amplifier Type Power
Common Mode Rejection Ratio 98 dB
Current - Input Bias 10pA
Voltage - Supply, Single/Dual (±) 30V~200V ±15V~100V
Output Current per Channel 20A
Input Offset Voltage (Vos) 5mV
Gain Bandwidth Product 2MHz
Neg Supply Voltage-Nom (Vsup) -75V
Unity Gain BW-Nom 2000 kHz
Voltage Gain 102dB
Average Bias Current-Max (IIB) 0.00005μA
Low-Offset NO
Frequency Compensation NO
Low-Bias YES
Bias Current-Max (IIB) @25C 0.00005μA
Dual Supply Voltage 75V
Power YES
Common-mode Reject Ratio-Min 86 dB
Dimensions
Height 6.8mm
Length 58.65mm
Width 41.4mm
Compliance
RoHS Status RoHS Compliant
