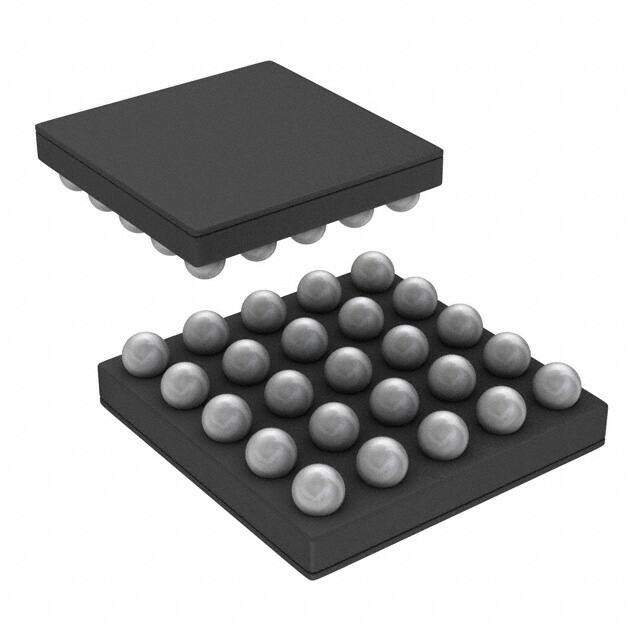

LM4845ITL/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 25-WFBGA, DSBGA
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
BALL ROHS3Compliant Contains Lead Surface Mount Amplifier IC Class AB -40C~85C TA 71dB 75mW 6.8mA
PDF
/
Buying Options
Total Price: USD $2.42
Unit Price: USD $2.42
≥1 USD $2.42
Inventory: 3342
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Max Output Power x Channels @ Load 1.15W x 1 @ 8 Ω; 75mW x 2 @ 32 Ω
Dual Supply Voltage 5V
Max Output Power 1.15W
Max Dual Supply Voltage 5.5V
Gain 71 dB
Power Supply Rejection Ratio (PSRR) 88dB
Supply Type Dual
Output Power 75mW
Nominal Supply Current 6.8mA
Number of Channels 3
Output Type 1-Channel (Mono) with Stereo Headphones
Base Part Number LM4845
Terminal Pitch 0.5mm
Number of Functions 3
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Voltage - Supply 2.7V~5.5V
Subcategory Audio/Video Amplifiers
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Class AB
ECCN Code EAR99
Number of Terminations 25
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature 3D, Depop, I2C, Mute, Shutdown, SPI, Thermal Protection, Volume Control
JESD-609 Code e1
Series Boomer?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 25
Package / Case 25-WFBGA, DSBGA
Mounting Type Surface Mount
Mount Surface Mount
