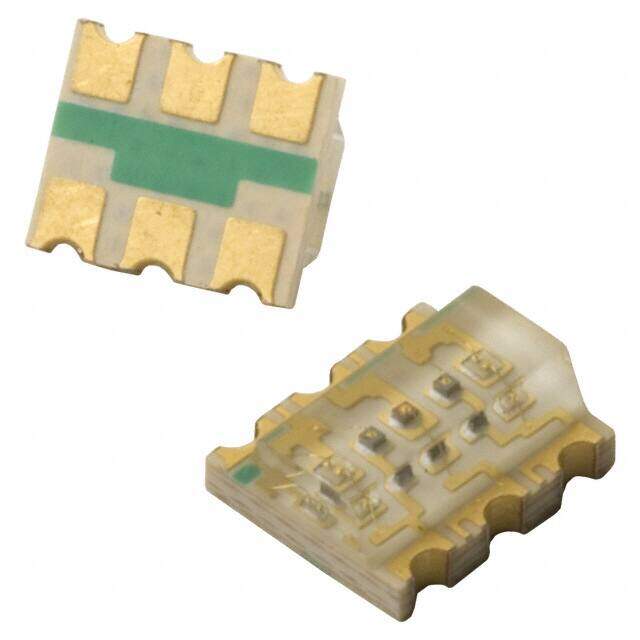

OVSTRGBFC6
RoHS
/
Package 1412 (3530 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR CHIP SMD
PDF
/
Inventory: 1965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1412 (3530 Metric)
Number of Pins 6
Supplier Device Package Chip LED
Technical
Packaging Tape & Reel (TR)
Published 2005
Size / Dimension 3.50mm Lx3.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Color Red, Green, Blue (RGB)
Case Code (Metric) 3530
Case Code (Imperial) 1412
Configuration Independent
Voltage - Forward (Vf) (Typ) 1.9V Red 3.3V Green 3.4V Blue
Viewing Angle 120 °
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Flat Top
Lens Size 1.50mmx3.50mm
Forward Voltage 3.4V
Luminous Intensity 63 mcd
Millicandela Rating 74.5mcd Red, 227mcd Green, 63mcd Blue
Lens Transparency Clear
Lens Color Colorless
Wavelength - Dominant 626nm Red 530nm Green 470nm Blue
Wavelength 480 nm
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height (Max) 1.50mm
Width 3mm
Length 3.5mm
Height 1.5mm
