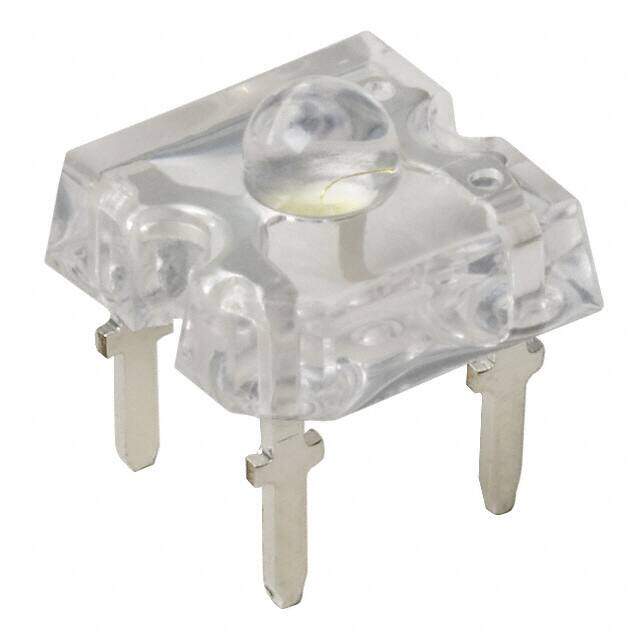

OVFSW6C8
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP (0.200, 5.08mm)
Category Optoelectronics / LED Indication - Discrete
Description
LED WHITE CLEAR T/H
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height (Max) 6.15mm
Width 7.6mm
Length 7.6mm
Height 6.15mm
Technical
Reverse Voltage 5V
Luminous Flux 7 lm
Lens Color Colorless
Lens Transparency Clear
Illumination Color White
Luminous Intensity 1.2 cd
Forward Voltage 4V
Lens Size 3.00mm Dia
Lens Style Round with Domed Top
Current - Test 30mA
Forward Current 30mA
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 3.6V
Power Dissipation 154mW
Configuration Standard
Number of Elements 1
Lead Length 2.8mm
Lead Pitch 5.08mm
Depth 7.6mm
Color White
Min Operating Temperature -40°C
Max Operating Temperature 95°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 7.60mm Lx7.60mm W
Published 2006
Packaging Tube
Physical
Number of Pins 4
Package / Case 4-DIP (0.200, 5.08mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
