XZVG60W
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3016 Metric)
Category Optoelectronics / LED Indication - Discrete
Description

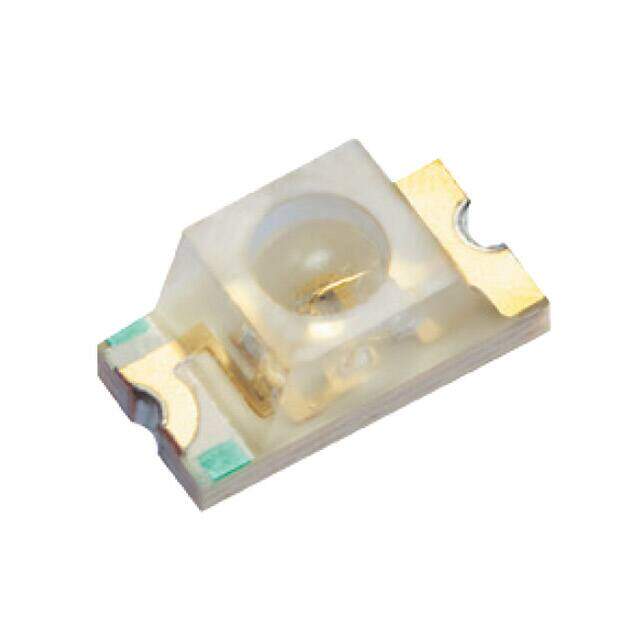

LED GREEN CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.23584
≥100 USD $0.157256
≥500 USD $0.108786
≥1000 USD $0.090658
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3016 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 3.00mm Lx1.50mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Green
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 70°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 2.00mmx1.50mm
Luminous Intensity 118 mcd
Lens Transparency Clear
Wavelength - Peak 574nm
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 570nm
Dimensions
Height 1.4mm
Compliance
RoHS Status ROHS3 Compliant
