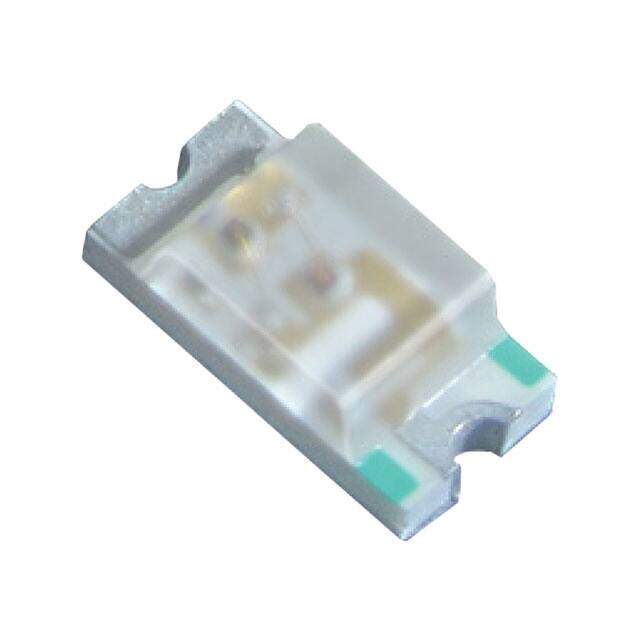

XZMDKCBD55W-4
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/RED CLEAR 2SMD
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.52545
≥1 USD $0.52545
≥10 USD $0.49571
≥100 USD $0.46765
≥500 USD $0.44118
Inventory: 500
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.30mm
Technical
Wavelength - Dominant 465nm Blue 630nm Red
Overall Height 1.1mm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 460nm Blue 645nm Red
Lens Transparency Clear
Millicandela Rating 98mcd Blue, 69mcd Red
Luminous Intensity 228.0/98.0 mcd
Lens Size 2.00mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Blue 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 3.3V Blue 1.95V Red
Configuration Bidirectional
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.75mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Blue, Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2016
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
