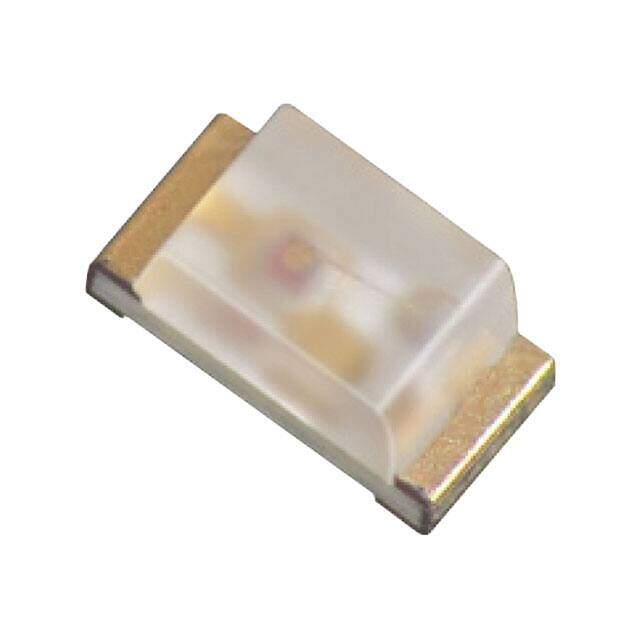

XZFBB53W-1
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Led Blue Clear 2SMD
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.3168
≥100 USD $0.181896
≥500 USD $0.142384
Inventory: 1315
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2016
Size / Dimension 1.60mm Lx0.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Blue
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 1.65mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.3V
Viewing Angle 130°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.80mm
Luminous Intensity 178.0 mcd
Millicandela Rating 178mcd
Lens Transparency Clear
Wavelength - Peak 465nm
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 0.75mm
Wavelength - Dominant 470nm
Dimensions
Height (Max) 0.85mm
Compliance
RoHS Status ROHS3 Compliant
