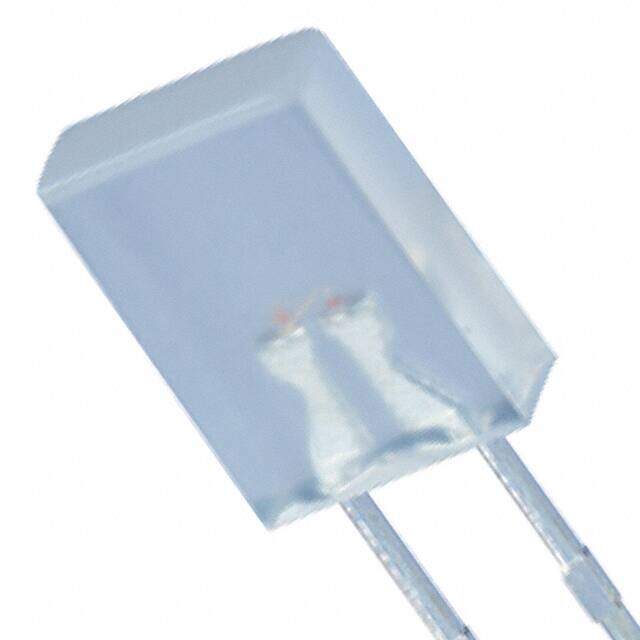

XSUGY18M
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/YELLOW DIFFUSED RECT T/H
PDF
/
Inventory: 7089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Wavelength - Dominant 568nm Green 588nm Yellow
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 590nm Yellow
Lens Transparency Diffused
Millicandela Rating 5mcd Green, 3.8mcd Yellow
Luminous Intensity 3.8 mcd
Lens Size 5.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Yellow
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Yellow
Configuration Bidirectional
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
Color Green, Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2013
Packaging Bulk
Physical
Shape RECTANGULAR
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
