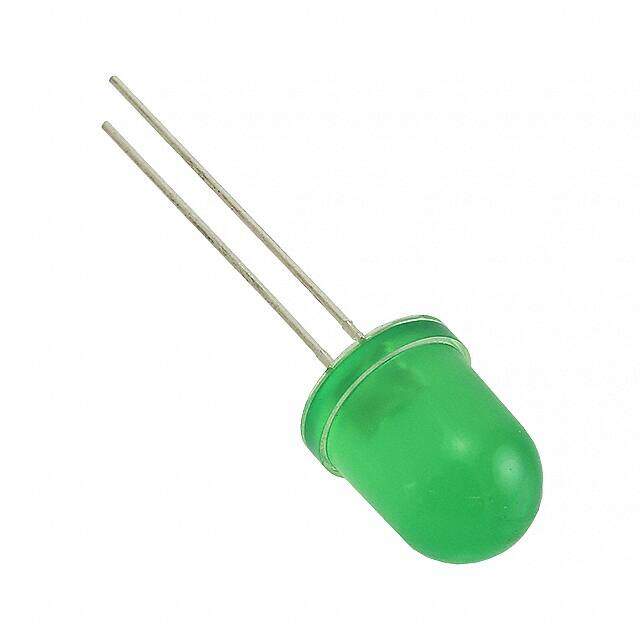

WP813GD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED 10MM SS 565NM GRN DIFF TH
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.17512
≥100 USD $0.117128
≥500 USD $0.080995
≥1000 USD $0.067487
≥3000 USD $0.060746
Inventory: 7565
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 30°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 10.00mm Dia
Luminous Intensity 60 mcd
Millicandela Rating 60mcd
Lens Transparency Diffused
Wavelength - Peak 565nm
Wavelength - Dominant 568nm
T-code T-4
Dimensions
Height 13.5mm
Compliance
RoHS Status ROHS3 Compliant
