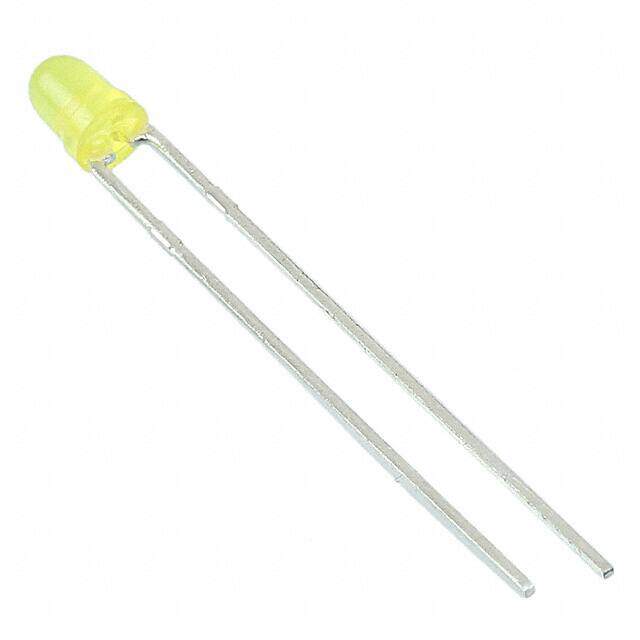

WP7104YD
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED SS 3MM 588NM YELLOW DIFF
PDF
/
Inventory: 9019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 4.9mm
Technical
T-code T-1
Wavelength - Dominant 588nm
Wavelength - Peak 590nm
Lens Transparency Diffused
Luminous Intensity 15 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 40°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2007
Packaging Bulk
Physical
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
