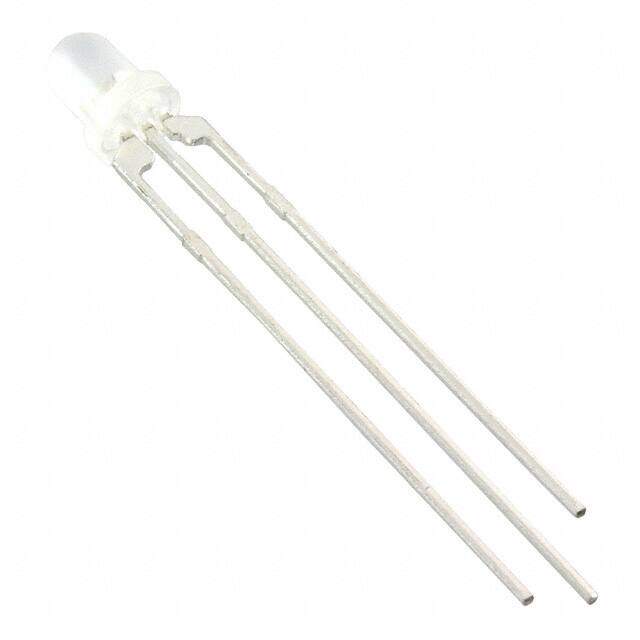

WP115VEGW
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
3mm R/G Bi-Color LED; White Diffused; 617nm/568nm; 60° Viewing Angle
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.27602
≥1 USD $0.27602
≥10 USD $0.219769
≥100 USD $0.194914
≥500 USD $0.164827
≥1000 USD $0.150437
Inventory: 142
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Technical
Packaging Bulk
Published 2007
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green, Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BOX/BAG
Number of Functions 1
T-code T-1
Wavelength - Dominant 568nm Green 617nm Red
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 627nm Red
Lens Transparency Diffused
Illumination Color Green, Red
Millicandela Rating 30mcd Green, 20mcd Red
Luminous Intensity 50 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.2V Green 2V Red
Configuration Common Cathode
Terminal Pitch 2mm
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 5mm
