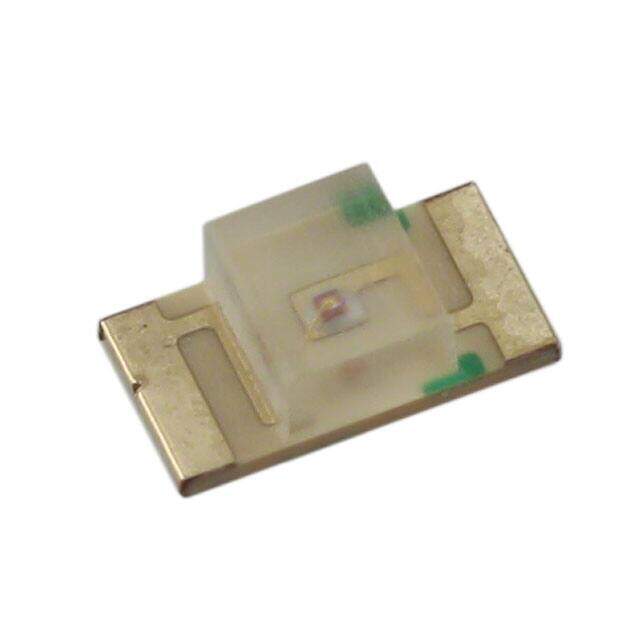

APTR3216YC image
Favorite
APTR3216YC image
Favorite

APTR3216YC

Kingbright
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED 3.2X1.6MM 588NM YLW CLR SMD
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.22088
≥100 USD $0.099176
≥500 USD $0.089584
≥1000 USD $0.073594
Inventory: 1167
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount, Bottom Entry
Package / Case 1206 (3216 Metric)
Number of Pins 2
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Yellow
Subcategory Visible LEDs
Power Rating 75mW
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.6mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.60mm
Luminous Intensity 8 mcd
Millicandela Rating 8mcd
Lens Transparency Clear
Wavelength - Peak 590nm
Lens Color Colorless
Wavelength - Dominant 588nm
Number of LEDs 1
Reverse Voltage-Max 5V

Dimensions

Height 1.05mm

Compliance

RoHS Status ROHS3 Compliant
Lead Free Lead Free
