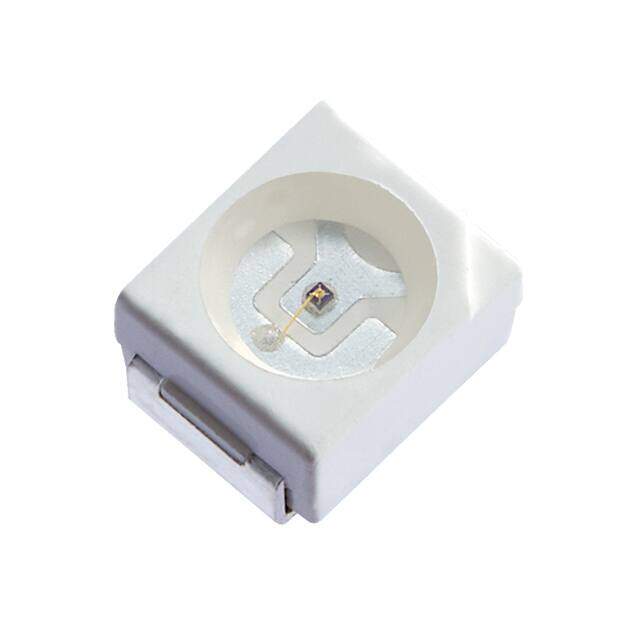

AA3528SYCK
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD YELLOW WATER CLEAR
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.24552
≥100 USD $0.141064
≥500 USD $0.110387
Inventory: 1136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-PLCC
Technical
Packaging Tape & Reel (TR)
Published 2005
Size / Dimension 3.20mm Lx2.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.1mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 100 mcd
Millicandela Rating 250mcd
Lens Transparency Clear
Lens Color Colorless
Forward Voltage-Max 2.5V
Overall Height 1.8mm
Wavelength - Dominant 590nm
Reverse Voltage-Max 5V
Peak Wavelength 590 nm
Dimensions
Height (Max) 2.15mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
