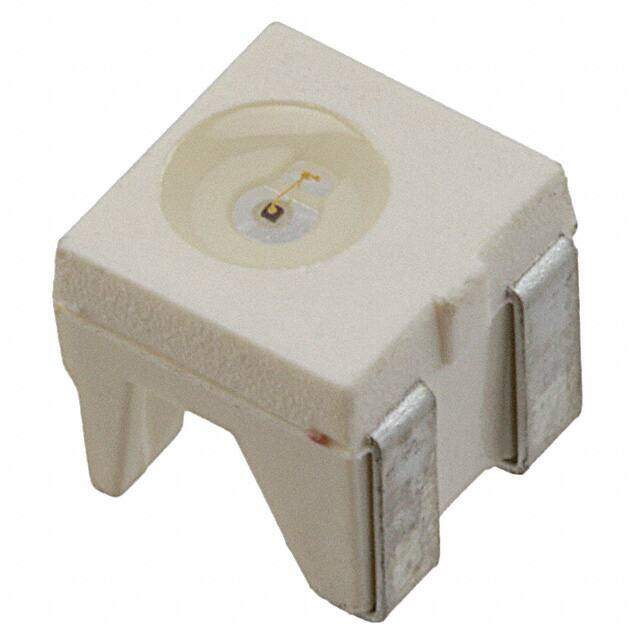

5972401202F image
Favorite
5972401202F image
Favorite

5972401202F

Dialight
RoHS
RoHS RoHS compliant
Package 2-SMD, Boomerang
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW CLEAR SMD R/A
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.4048
Inventory: 60
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 4.20mm

Technical

Wavelength - Dominant 587nm
Overall Height 4mm
Forward Voltage-Max 2.6V
Forward Current-Max 0.02A
Lens Color Colorless
Wavelength - Peak 591nm
Lens Transparency Clear
Millicandela Rating 70mcd
Luminous Intensity 14.0 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.8V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.5mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Additional Feature SUPPORTS INFRARED
Color Yellow
Terminal Finish Tin/Silver/Nickel (Sn/Ag/Ni)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 3.60mm Lx4.00mm W
Series 597
Published 2002
Packaging Strip

Physical

Surface Mount YES
Package / Case 2-SMD, Boomerang
Mounting Type Surface Mount, Right Angle

Supply Chain

Factory Lead Time 10 Weeks
