5219628F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

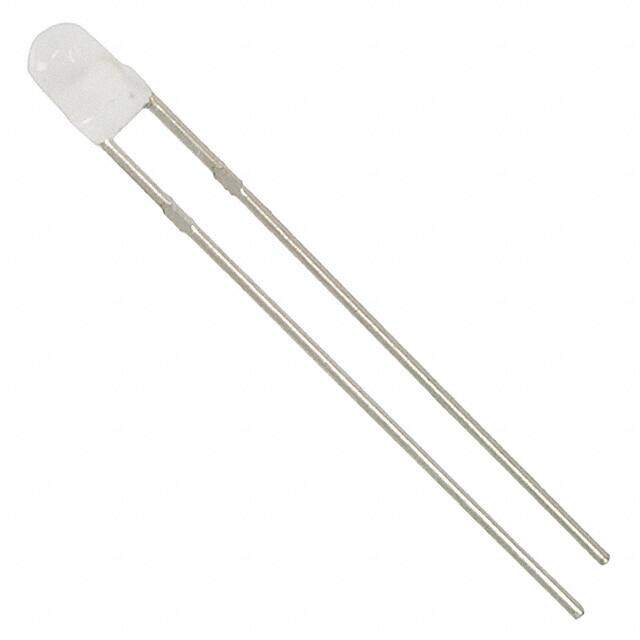

LED GREEN/RED DIFFUSED 3MM T/H
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.57992
≥100 USD $0.379984
≥500 USD $0.299974
≥1000 USD $0.279972
≥3000 USD $0.269975
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 5.70mm
Technical
Peak Wavelength 660/565 nm
T-code T-1
Overall Height 4.45mm
Forward Voltage-Max 2.4V
Forward Current-Max 0.04A
Lens Color White
Lens Transparency Diffused
Millicandela Rating 3.7mcd Green, 12.6mcd Red
Luminous Intensity 12.6/3.7 mcd
Lens Size 3.00mm Dia
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 200 deg
Configuration COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Green, Red
Terminal Finish Copper/Nickel/Silver (Cu/Ni/Ag)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 521
Published 2002
Packaging Bulk
Physical
Surface Mount NO
Package / Case Radial
Mounting Type Through Hole
Supply Chain
Factory Lead Time 10 Weeks
