HLMP-EG3G-VX0DD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

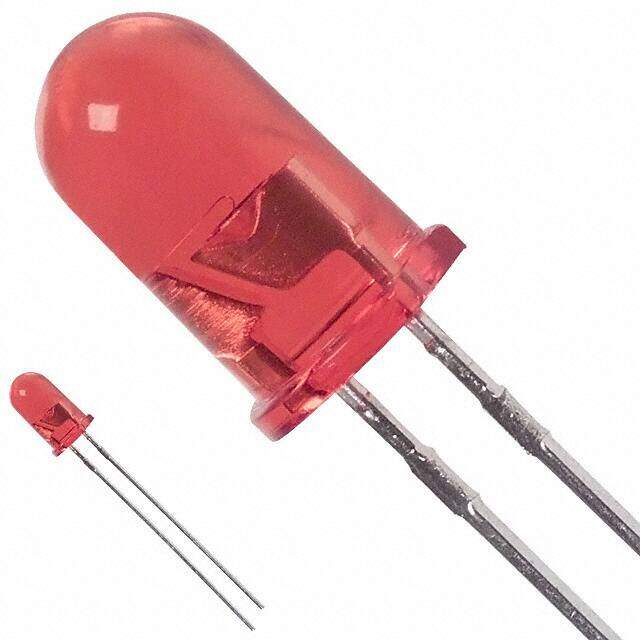

LED, 5MM, RED, 9.3CD, 626NM
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.48224
≥100 USD $0.316096
≥500 USD $0.249577
Inventory: 1726
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 5.8mm
Height 8.91mm
Technical
Wavelength - Dominant 626nm
Reverse Voltage 5V
Luminous Flux 1 lm
Wavelength - Peak 634nm
Millicandela Rating 6750mcd
Luminous Intensity 6.75 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 2.1V
Power Dissipation 120mW
Configuration Standard
Number of Elements 1
Base Part Number HLMP-EG
Depth 5.8mm
Subcategory Visible LEDs
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2014
Packaging Tape & Box (TB)
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
