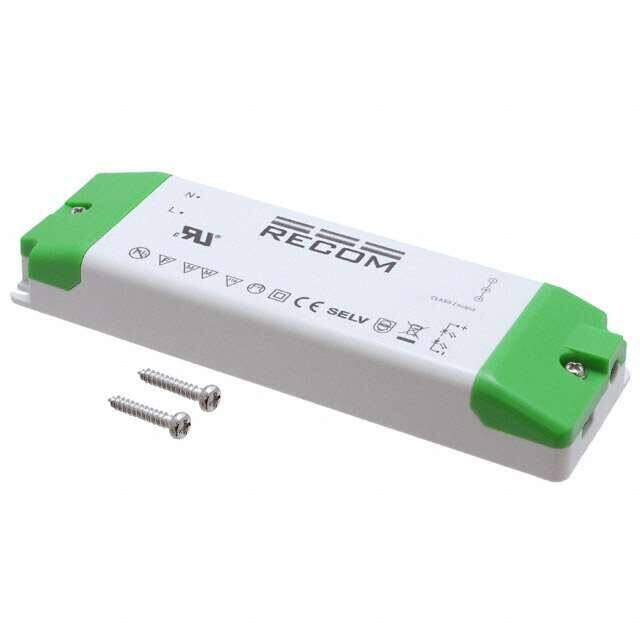

RACV30-12
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CV AC/DC 12V 2.5A
PDF
/
Buying Options
Total Price: USD $42.32
Unit Price: USD $42.316542
≥1 USD $42.316542
≥10 USD $39.921269
≥100 USD $37.661569
≥500 USD $35.529784
≥1000 USD $33.518664
Inventory: 3266
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 22mm
Technical
Max Output Power 30W
Current - Output 1 2.5A
Topology AC DC Converter
Max Output Voltage 12V
Output Power 30W
Output Current 2.5A
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Input (Min) 90VAC
Voltage - Output 1 12V
Max Output Current 2.5A
Output Voltage 12V
Voltage - Input (Max) 264VAC
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CE, cULus, EN
Number of Outputs 1
JESD-30 Code R-PXFM-X6
Termination Style 5.5mm Socket, Screw Terminal
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 50mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Technology HYBRID
Max Power Dissipation 30W
Voltage - Rated 370V
Type Constant Voltage
ECCN Code EAR99
Termination Screw
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature OCP, OTP, SCP
Size / Dimension 6.30Lx1.97W x 0.87 H 160.0mmx50.0mmx22.0mm
Series LIGHTLINE RACV30 (30W)
Operating Temperature -20°C~50°C
Physical
Weight 0.375lb 170.1g
Number of Pins 2
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
