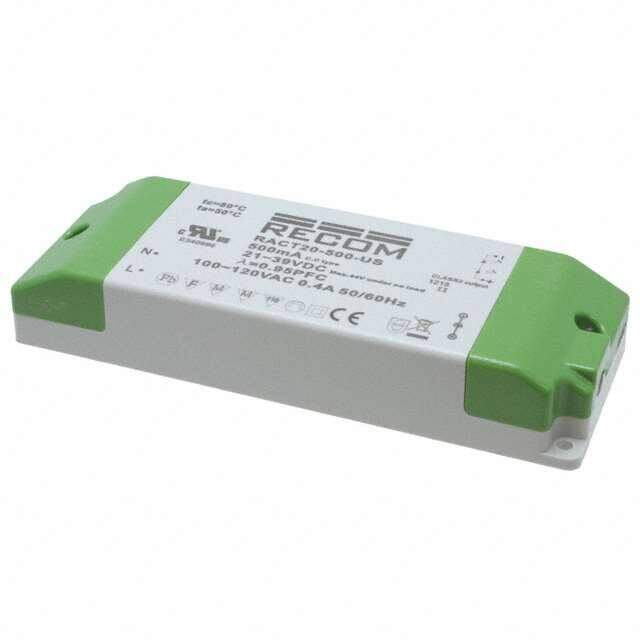

RACT20-500-US
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 21-39V 500MA
PDF
/
Inventory: 5171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 0.32lb 145.15g
Technical
Operating Temperature -30°C~50°C
Packaging Bulk
Series LIGHTLINE RACT20 (20W)
Size / Dimension 5.41Lx1.98W x 0.91 H 137.5mmx50.2mmx23.0mm
Feature OTP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Constant Current
Max Power Dissipation 20W
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Termination Style 5.5mm Socket, Screw Terminal
Number of Outputs 1
Approval Agency CE, cULus
Efficiency 82%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 135VAC
Max Output Current 500mA
Voltage - Output 1 39V
Voltage - Input (Min) 90VAC
Output Current 500mA
Output Power 20W
Max Output Voltage 39V
Voltage - Output 21V~39V
Topology AC DC Converter
Current - Output 1 500mA
Dimming Triac
Dimensions
Height 23mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP20
