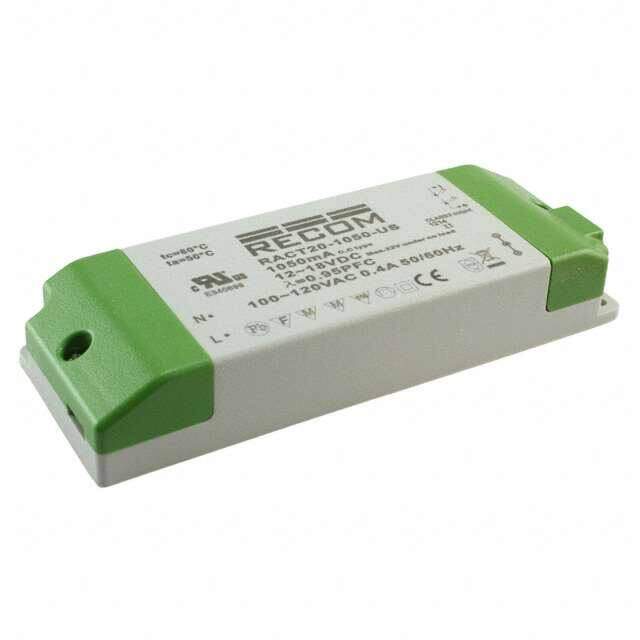

RACT20-1050-US
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 12-18V 1.05A
PDF
/
Inventory: 3264
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP20
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 23mm
Technical
Dimming Triac
Current - Output 1 1.05A
Topology AC DC Converter
Voltage - Output 12V~18V
Max Output Voltage 18V
Output Power 20W
Output Current 1.05A
Voltage - Input (Min) 90VAC
Voltage - Output 1 18V
Max Output Current 1.05A
Voltage - Input (Max) 135VAC
Voltage - Isolation 3.75kV
Efficiency 81%
Approval Agency CE, cULus
Number of Outputs 1
Termination Style 5.5mm Socket, Screw Terminal
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 20W
Type Constant Current
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OTP, SCP
Size / Dimension 5.41Lx1.98W x 0.91 H 137.5mmx50.2mmx23.0mm
Series LIGHTLINE RACT20 (20W)
Packaging Bulk
Operating Temperature -30°C~50°C
Physical
Weight 0.32lb 145.15g
Mounting Type Chassis Mount
Mount Chassis Mount
