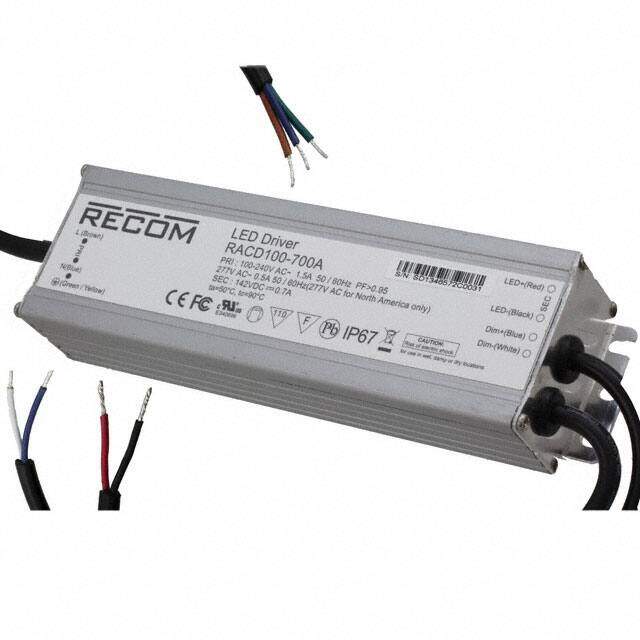

RACD100-700A
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 100-142V
PDF
/
Inventory: 4844
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 37mm
Technical
Dimming Analog, PWM
Max Output Power 100W
Current - Output 1 700mA
Topology AC DC Converter
Voltage - Output 100V~142V
Max Output Voltage 142V
Output Power 100W
Output Current 700mA
Voltage - Input (Min) 90VAC
Voltage - Output 1 142V
Max Output Current 700mA
Voltage - Input (Max) 305VAC
Voltage - Isolation 3.75kV
Efficiency 91%
Approval Agency CE, cUL, UL
Number of Outputs 1
Termination Style Wire Leads
Max Power Dissipation 100W
Voltage - Rated 430V
Type Constant Current
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OTP, OVP, SCP
Size / Dimension 7.80Lx2.24W x 1.50 H 198.0mmx57.0mmx37.0mm
Series LIGHTLINE RACD100-A (100W)
Operating Temperature -30°C~55°C
Physical
Weight 1.7lbs 771.1g
Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount
