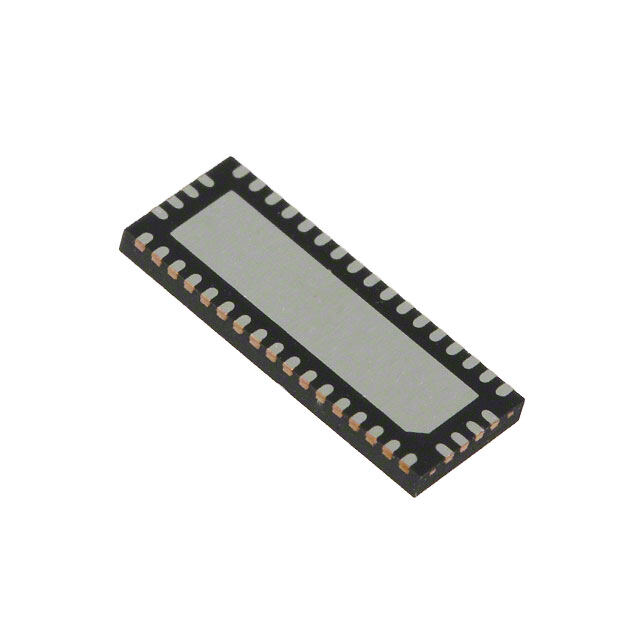

PI3HDX1204EZHE
RoHS
RoHS compliant
RoHS compliantPackage 42-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Specialized
Description
IC INTERFACE SPECIALIZED 42TQFN
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.95355
≥1 USD $2.95355
≥10 USD $2.42345
≥100 USD $2.34745
≥500 USD $2.2724
≥1000 USD $2.1964
Inventory: 10813
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 42-WFQFN Exposed Pad
Surface Mount YES
Technical
Packaging Tray
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 42
Applications HDMI Redriver, Level Shifter
HTS Code 8542.39.00.01
Voltage - Supply 3.3V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XQCC-N42
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Supply Voltage-Max (Vsup) 3.6V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 3V
Consumer IC Type CONSUMER CIRCUIT
Dimensions
Height Seated (Max) 0.8mm
Length 6mm
Width 3mm
Compliance
RoHS Status ROHS3 Compliant
