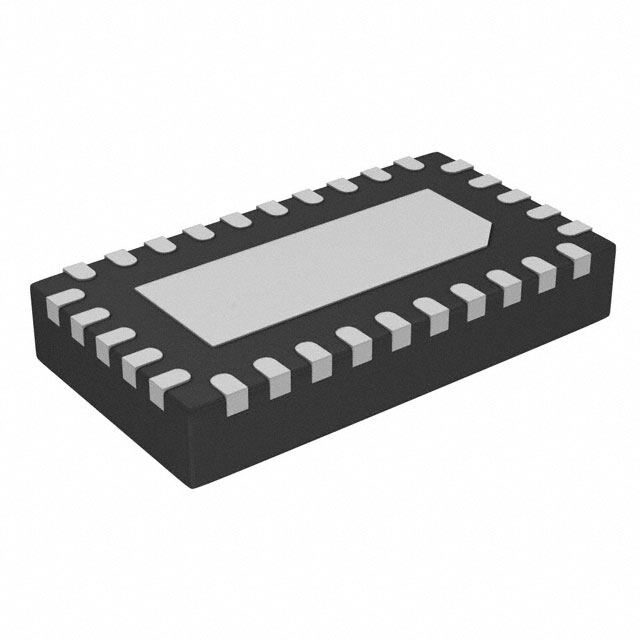

HD3SS460RNHT
RoHS
RoHS compliant
RoHS compliantPackage 30-WFQFN Exposed Pad
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
IC MUX/DEMUX 4CH TYPE C2 30WQFN
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.8392
≥1 USD $1.8392
≥10 USD $1.64912
≥100 USD $1.55584
≥500 USD $1.325544
Inventory: 554
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Mounting Type Surface Mount
Package / Case 30-WFQFN Exposed Pad
Surface Mount YES
Number of Pins 30
Technical
Operating Temperature 0°C~70°C TA
Packaging Tape & Reel (TR)
JESD-609 Code e4
Feature Bi-Directional
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2
Number of Terminations 30
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Applications USB
Terminal Position QUAD
Terminal Form NO LEAD
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.4mm
Base Part Number HD3SS460
Output SEPARATE OUTPUT
Supply Voltage-Max (Vsup) 3.6V
Number of Channels 1
Analog IC - Other Type SINGLE-ENDED MULTIPLEXER
Bandwidth 2700MHz
Supply Current-Max (Isup) 0.9mA
-3db Bandwidth 5.4GHz
On-State Resistance (Max) 14Ohm
Multiplexer/Demultiplexer Circuit 4:6
Off-state Isolation-Nom 25 dB
Switching BREAK-BEFORE-MAKE
Voltage - Supply, Single (V+) 3V~3.6V
Normal Position NO
Dimensions
Height 800μm
Length 4.5mm
Width 2.5mm
Thickness 750μm
Compliance
RoHS Status ROHS3 Compliant
