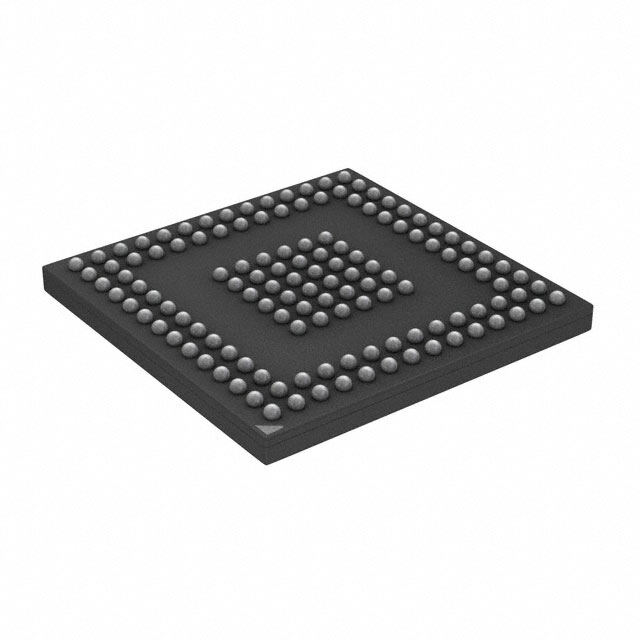

HV2803/AHA
RoHS
RoHS compliant
RoHS compliantPackage 132-TFBGA, CSPBGA
Category Integrated Circuits (ICs) / Interface - Analog Switches - Special Purpose
Description
HV MUX (SPST)
PDF
/
Buying Options
Total Price: USD $38.84
Unit Price: USD $38.8432
≥1 USD $38.8432
≥10 USD $32.3752
≥100 USD $31.273
Inventory: 123
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case 132-TFBGA, CSPBGA
Surface Mount YES
Technical
Operating Temperature 0°C~70°C
Packaging Tray
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 132
Applications Ultrasound
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 16
Supply Voltage 6V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Channels 32
Max Supply Voltage 6.3V
Min Supply Voltage 3V
Input Voltage (Min) -100V
Input Voltage (Max) 100V
Supply Current-Max (Isup) 8mA
Neg Supply Voltage-Nom (Vsup) -6V
-3db Bandwidth 50MHz
On-State Resistance (Max) 15Ohm
Multiplexer/Demultiplexer Circuit 1:1
Off-state Isolation-Nom -70 dB
Neg Supply Voltage-Max (Vsup) -4.5V
On-state Resistance Match-Nom 10Ohm
Switch Circuit SPST
Switch-on Time-Max 5ns
Switch-off Time-Max 5ns
Max Junction Temperature (Tj) 125°C
Normal Position NO
Ambient Temperature Range High 70°C
Signal Current-Max 3A
Voltage - Supply, Dual (V±) ±4.5V~6.3V
On-State Resistance 10.4Ohm
Dimensions
Height 1.2mm
Length 12mm
Compliance
RoHS Status ROHS3 Compliant
