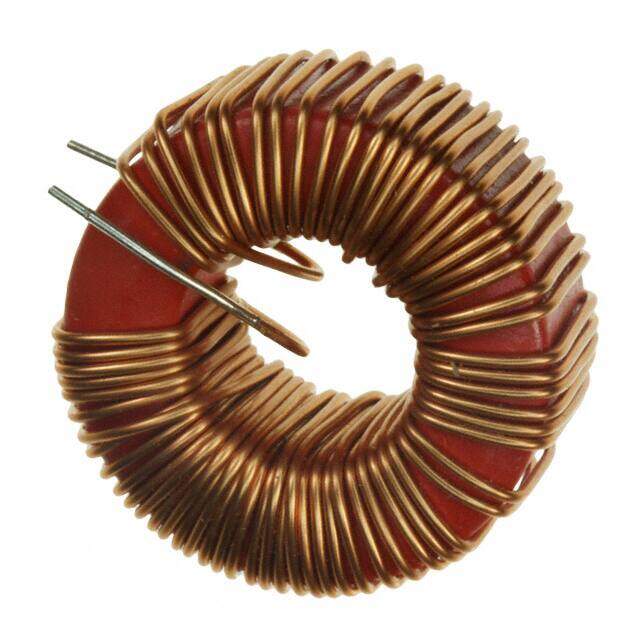

744136 image
Favorite
744136 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-SI Radial Vertical (Open) 1.220Diax0.591W 31.00mmx15.00mm 346muH
PDF
/
Buying Options
Total Price: USD $3.47
Unit Price: USD $3.465454
≥1 USD $3.465454
≥10 USD $3.269296
≥100 USD $3.084243
≥500 USD $2.909659
≥1000 USD $2.744963
Inventory: 1248
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 15.0114mm
Diameter 31mm

Technical

Series Resistance 140mOhm
Current - Saturation 1.5A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 3.3MHz
Max DC Current 3A
DC Resistance (DCR) 140mOhm Max
Test Frequency 10kHz
Inductance 346μH
Lead Pitch 13mm
Current Rating 3.8A
Depth 15mm
Shielding Unshielded
Current Rating (Amps) 3.8A
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Toroidal
Termination Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 1.220Diax0.591W 31.00mmx15.00mm
Series WE-SI
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole, Wire

Supply Chain

Factory Lead Time 16 Weeks
