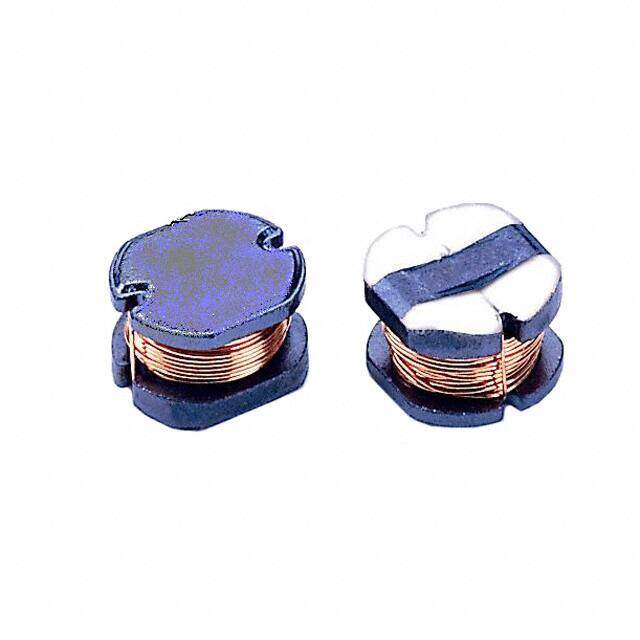

SC32-8R2
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active Tape & Reel (TR) fixed air core inductor -40C~125C 7.96MHz 285mOhm Max 8.2muH
PDF
/
Inventory: 2762
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series SC32
Size / Dimension 0.150Lx0.130W 3.80mmx3.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 900mA
Shielding Unshielded
Current Rating 900mA
Inductance 8.2μH
Test Frequency 7.96MHz
DC Resistance (DCR) 285mOhm Max
Inductance Frequency - Test 7.96MHz
Current - Saturation 770mA
Dimensions
Height Seated (Max) 0.094 2.40mm
Length 3.81mm
Width 3.302mm
Compliance
RoHS Status ROHS3 Compliant

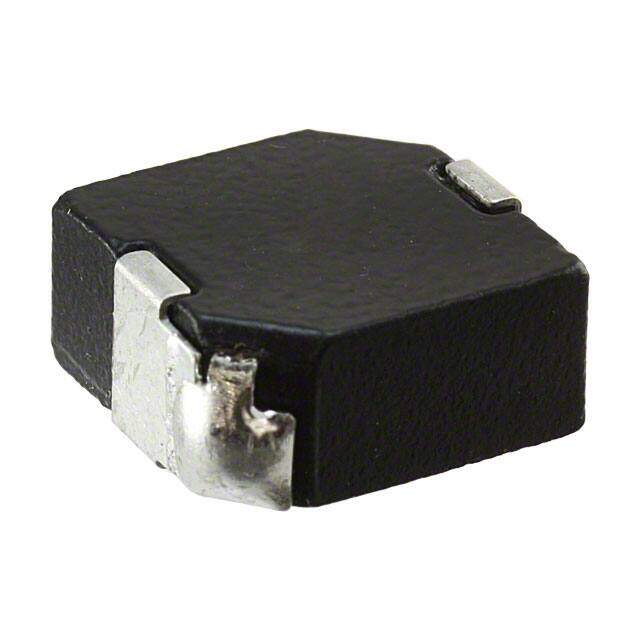

Alternative Model
