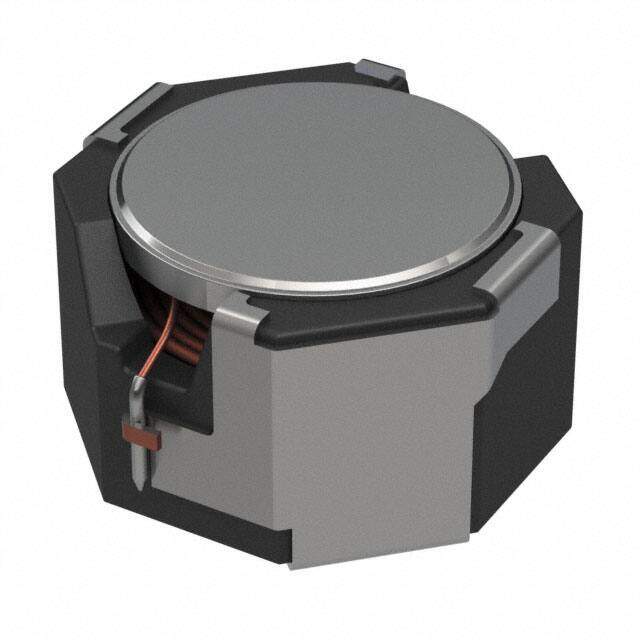

MDH10060C-4R7NA=P3
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MDH10060C Nonstandard 0.398Lx0.394W 10.10mmx10.00mm 4.7muH
PDF
/
Inventory: 8555
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status NRND (Last Updated: 1 month ago)
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~150°C
Packaging Tape & Reel (TR)
Series MDH10060C
Size / Dimension 0.398Lx0.394W 10.10mmx10.00mm
Tolerance ±30%
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 4.9A
Shielding Unshielded
Number of Functions 1
Inductance 4.7μH
Test Frequency 0.1MHz
DC Resistance (DCR) 10mOhm
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 5.9A
Rated Current-Max 4.9A
Dimensions
Height Seated (Max) 0.248 6.30mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
