5500R-564K
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

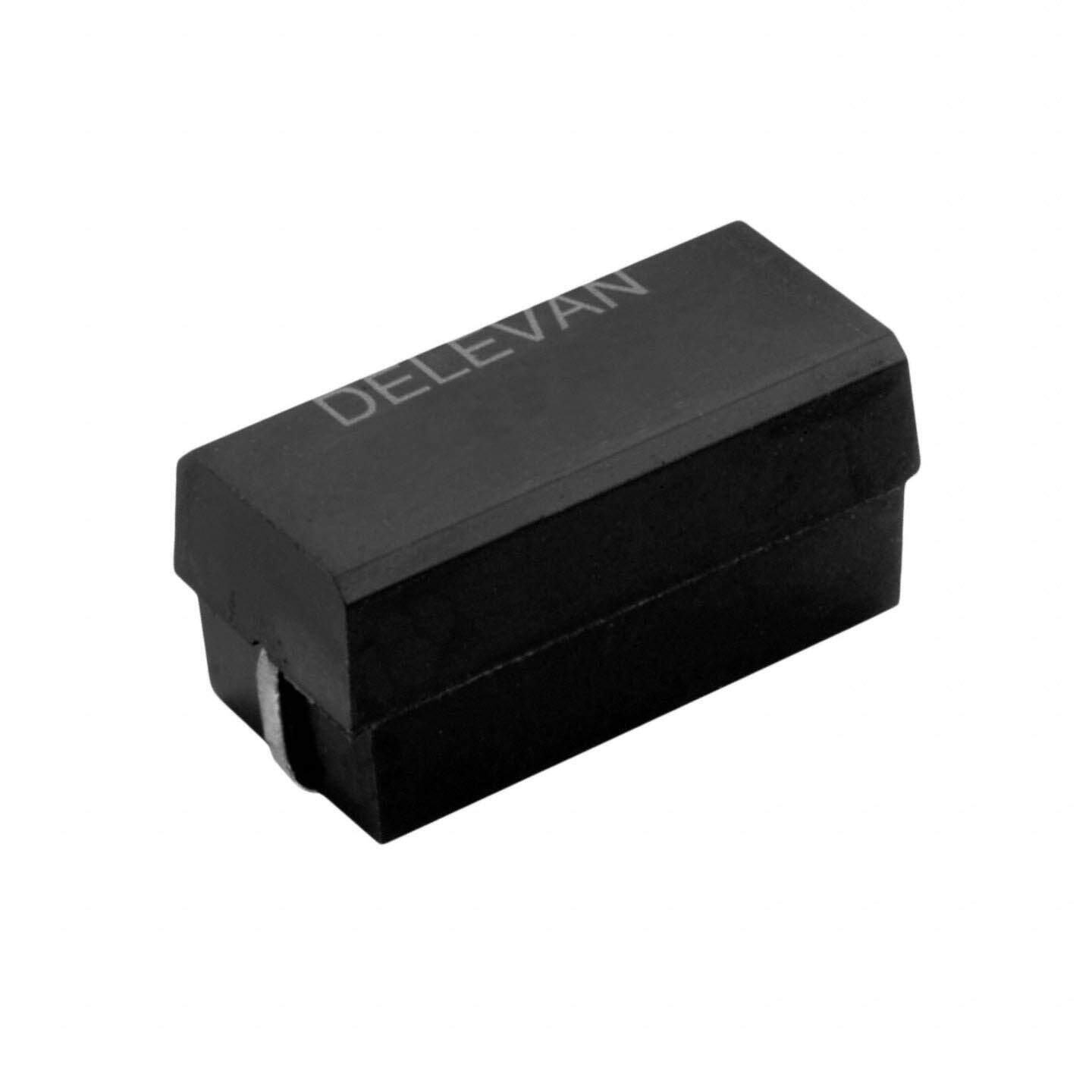

GENERAL PURPOSE INDUCTOR ROHS3Compliant Active WRAPAROUND fixed air core inductor -55C~130C 1kHz 504mOhm Max 560muH
PDF
/
Inventory: 911
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.520 13.21mm
Height 13.21mm
Technical
Current - Saturation 740mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.4A
DC Resistance (DCR) 504mOhm Max
Test Frequency 1kHz
Inductance 560μH
Current Rating 1.4A
Construction Rectangular
Depth 12.96mm
Number of Functions 1
Shielding NO
Packing Method TR, Paper, 13 Inch
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 1.050Lx0.495W 26.67mmx12.57mm
Series 5500R
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
Alternative Model
