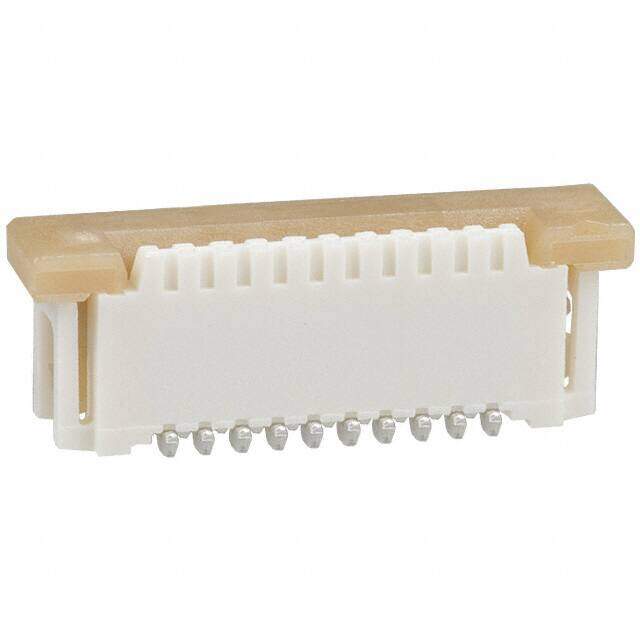

0526101071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC VERT 10POS 1.00MM SMD
PDF
/
Buying Options
Total Price: USD $1.28
Unit Price: USD $1.276
≥1 USD $1.276
Inventory: 6434
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.30mm
Height Above Board 0.226 5.74mm
Plating Thickness 39μin
Contact Finish Thickness 39.4μin 1.00μm
Technical
Locking Feature Slide Lock
Cable End Type Tapered
Connector/Contact Type Contacts, Vertical - 1 Sided
Mating Cycles 30
Withdrawl Force-Min ZIF N
Insertion Force-Max ZIF N
Contact Pattern RECTANGULAR
Contact Style BELLOWED TYPE
Body Depth 0.226 inch
UL Flammability Code 94V-0
Contact Gender FEMALE
Body Breadth 0.142 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 0.654 inch
Reliability COMMERCIAL
Contact Finish Tin Bismuth
Reference Standard UL, CSA
Total Number of Contacts 10
Pitch 0.039 1.00mm
Current Rating (Amps) 1A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
HTS Code 8536.69.40.51
Voltage - Rated 125V
Number of Rows 1
Number of Positions 10
Connector Type FFC/FPC CONNECTOR
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Zero Insertion Force (ZIF)
Series Easy-On 52610
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Actuator Material Polyphenylene Sulfide (PPS)
Mounting Option 1 LOCKING
Housing Material Polyamide (PA46), Nylon 4/6
Mounting Type Surface Mount
Contact Material Phosphor Bronze
