TC277TP64F200SCAKXUMA1
RoHS
RoHS compliant

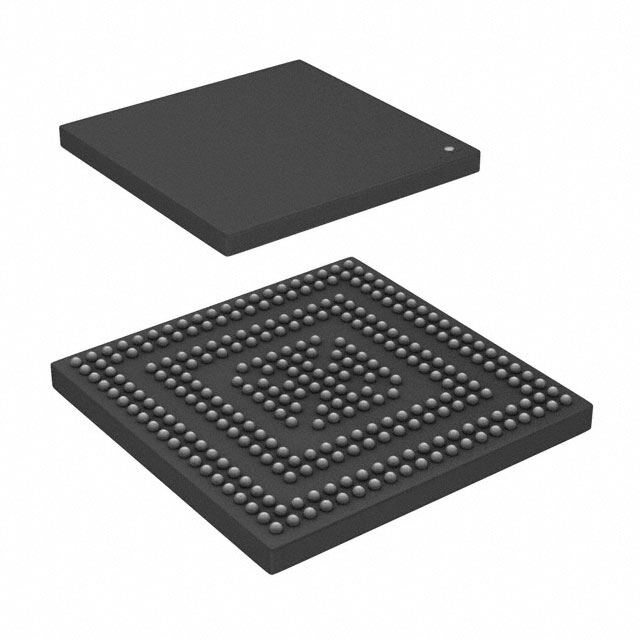

RoHS compliantPackage 292-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
IC MCU 32BIT 4MB FLASH 292LFBGA
PDF
/
Inventory: 1965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 17mm
Length 17mm
Height Seated (Max) 1.7mm
Technical
RAM (bytes) 483328
On Chip Program ROM Width 8
EEPROM Size 64K x 8
ROM (words) 4194304
DAC Channels NO
Halogen Free Halogen Free
PWM Channels NO
DMA Channels YES
Has ADC YES
Watchdog Timer Yes
Data Converter A/D 60x12b, 6 x Sigma-Delta
Bit Size 32
Connectivity ASC, CANbus, Ethernet, FlexRay, HSSL, I2C, LINbus, MSC, PSI5, QSPI, SENT
Program Memory Size 4MB 4M x 8
Core Size 32-Bit Tri-Core
Program Memory Type FLASH
Peripherals DMA, WDT
Core Processor TriCore?
uPs/uCs/Peripheral ICs Type MICROCONTROLLER
Voltage - Supply (Vcc/Vdd) 3V~5.5V
RAM Size 472K x 8
Number of I/O 169
Oscillator Type External
Memory Size 4MB
Interface CAN, Ethernet, I2C, LIN
Supply Voltage-Min (Vsup) 1.17V
Supply Voltage-Max (Vsup) 1.43V
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 200MHz
Terminal Pitch 0.8mm
Supply Voltage 1.3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
Additional Feature IT IS ALSO HAVING 6-CH DELTA-SIGMA ADC
ECCN Code 3A991.A.2
Number of Terminations 292
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
Series AURIX?
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Number of Pins 292
Surface Mount YES
Package / Case 292-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 26 Weeks
Alternative Model
